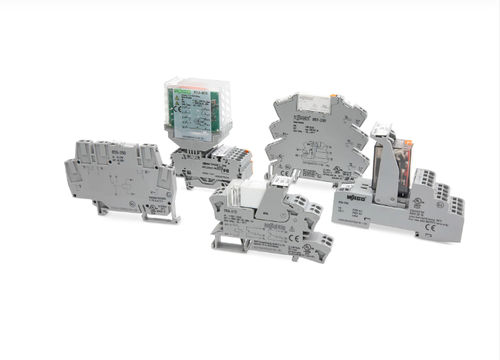

Relay Sockets with a Miniature Switching Relay (788 Series)
WAGO's 788 Series Relay Sockets are ideal for switching applications in both industrial and process automation. These modules can be used either with two channels or for reliably switching higher loads (e.g., lamp loads) up to 16 A.
•Quick and simple elementary relay replacement after a failure
•Compact housing: just 15 mm (0.590 inch) wide
•Commoning options on both control and load side
•Tool-free connection via Push-in CAGE CLAMP®
•Reinforced insulation between coil and contacts
•A separator plate (e.g., 209-191) must be used for voltages greater than 250 V between adjacent relay modules and for compliance with the reinforced insulation requirements.
•To protect the relay coils and contacts, inductive loads must be dampened with an effective protection circuit.
