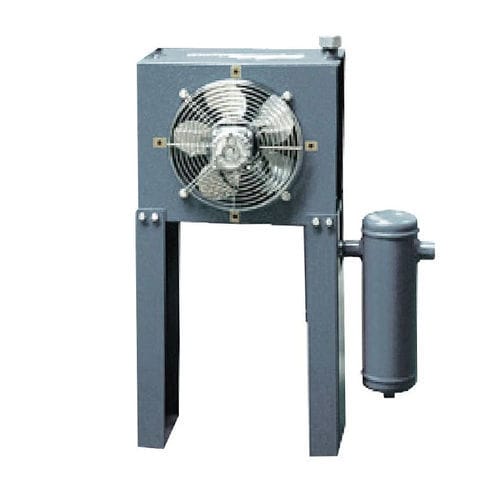

Compressed air aftercooler WAC 37
for compressorsfor process airfor industrial operation

Compressed air aftercooler - WAC 37 - Walter Kompressortechnik Polska Sp. z o. o. - for compressors / for process air / for industrial operation

Add to favorites

Compare this product

Go to the Walter Kompressortechnik Polska Sp. z o. o. website for more information

Characteristics

Material: compressed air
Applications: for process air, for industrial operation, for compressors
Other characteristics: with AC motor, air-cooled
Flow rate: 222 m³/h
(7,839.856 ft³/h)

Description

Product overview
Compressed air cooler for reducing discharge temperature and separating condensate in industrial compressed air systems. Supplied as model WAC 37 and includes CCS 49 module. Suitable for continuous operation at flows up to 3700 l/min (222 m3/h).

Technical data

Product type: Compressed air cooler
Flow: 3700 l/min (222 m3/h)
Includes: CCS 49 module
Connection: G 1 1/2"
Supply voltage: 400 V
Fan diameter: 400 mm

Applications and installation notes

Applications: compressor packages, industrial compressed air networks, pneumatic systems
Installation: fixed installation, provide access for fan and maintenance
Electrical: requires 400 V supply; comply with local electrical standards
Maintenance: inspect condensate discharge and fan regularly
