Shell-end milling cutter M3024 series
solid carbideindexable insertface

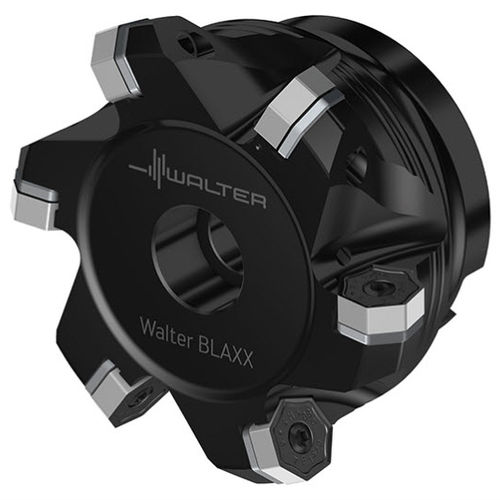

Shell-end milling cutter - M3024 series - Walter Tools - solid carbide / indexable insert / face
Shell-end milling cutter - M3024 series - Walter Tools - solid carbide / indexable insert / face
Shell-end milling cutter - M3024 series - Walter Tools - solid carbide / indexable insert / face - image - 2
Shell-end milling cutter - M3024 series - Walter Tools - solid carbide / indexable insert / face - image - 3
Shell-end milling cutter - M3024 series - Walter Tools - solid carbide / indexable insert / face - image - 4
Add to favorites
Compare this product

Characteristics

Geometry
shell-end
Construction
solid carbide, indexable insert
Type
face
Material
coated, PVD, CVD
Treated material
for steel, for cast iron
Other characteristics
cutting edge, high-efficiency, high feed rate, cutting
Diameter

Max.: 160 mm
(6.3 in)

Min.: 63 mm
(2.48 in)

Length

Max.: 63 mm
(2.48 in)

Min.: 40 mm
(1.57 in)

Description

Face milling in all steel and cast iron workpieces as well as in stainless steels Perfect for machining components in mass production, such as exhaust turbochargers Areas of use: General mechanical engineering and other sectors The tool Walter BLAXX M3024 45° face milling cutter Protected against corrosion and wear by special Walter BLAXX surface treatment Benefits for you High level of cost-efficiency, even on low-performance machines Soft cutting action and high metal removal rate thanks to positive cutting edge geometry High level of process reliability thanks to stable indexable inserts Carbide shim provides an optimum support face and a high feed per tooth

Catalogs

No catalogs are available for this product.

See all of Walter Tools‘s catalogs
