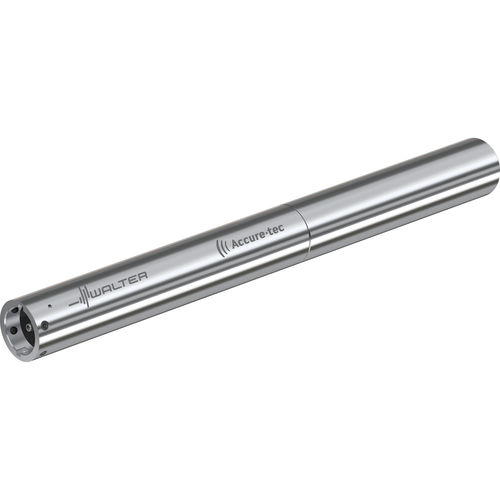

Tool holder with cylindrical shank A3001 series

for machininganti-vibration

– High productivity and surface quality thanks to low-vibration bore machining – Time saving thanks to quick, precise tool changes (±0.002 mm) with QuadFit exchangeable heads – Reliable due to excellent chip removal from the bore thanks to larger f dimension – Vibration damping “preset” at the factory – ready for immediate use, no time lost tuningFor A2201 intermediate adaptor with QuadFit interface With preset vibration damping Connection diameter - d1 - 60mm Connection diameter - d11 - QL60 Maximum projection length - l4 - 301mm Shank length - l5 - 240mm Overall length - l1 - 541mm Pull stud, thread size - d13 - G 3/4 Weight - WT - 12.5kg
