Optical microscope WMM200

measuringbinocularbenchtop

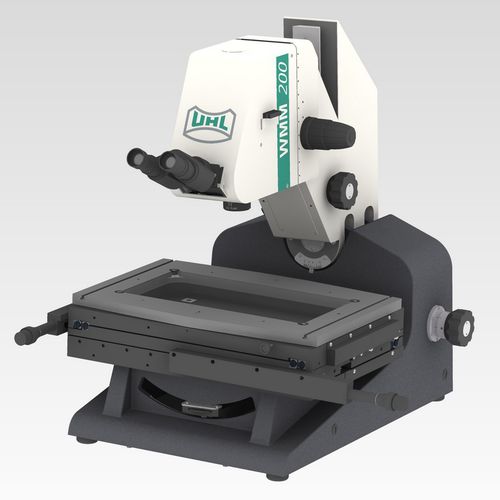

Valuable and solid toolmakers measuring microscope with swivel-mounted column, binocular tube and brilliant telecentric optics. The modular concept provides flexible customized configurations. • adjustable binocular tube (swivel range 25° to -5°) • telecentric optical system • easily exchangable objektives • measuring stage with quick and fine-adjustment or motorized axes • smooth-running coaxial coarse and fine focus drive • stable aluminium cast stand • swivel-mounted column, +/- 20° adjustable by handwheel • additional height adjustment range of 200 mm • stepless coaxial incident and transimitted light with glas fiber and cold light source • high resolution digital video camera The entire microscope column together with the transmitted light can be swiveled within +/- 20° by handwheel to measure especially profiles (e.g. worm drives, tap drills, etc) in normal section. The swiveling angle is shown by a scale with 1° pitch. The handwheel with its precise drive and gear reduction of 2° per rotation ensures an accurate angle adjustment. A clamping lever fixes the column in this position safely. The precision measuring stage with a measuring range of 250 x 150 mm has a +/- 4° swiveling plate for manual workpiece alignment. Within a range of 150 mm the z-axis can be moved by a coarse and fine drive for focusing. Additionally the WMM200 provides a lockable, handwheel driven heigt adjustment range of 200 mm.
