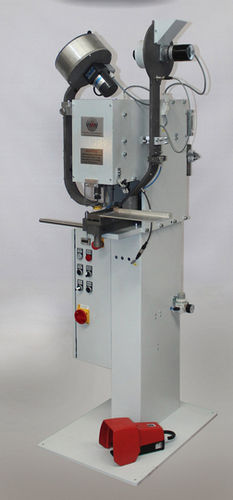

Electric eyeleting machine 033_10 (2)
automaticautomatic feed

electric eyeleting machine
electric eyeleting machine
electric eyeleting machine
electric eyeleting machine
electric eyeleting machine
electric eyeleting machine
electric eyeleting machine
electric eyeleting machine
Add to favorites
Compare this product


Characteristics

Operation
electric
Operational mode
automatic
Type
automatic feed

Description

Electric eyeletting machine with pre-punching device and disc feed for automatic insertion of eyelets and discs in fabric binders or fabric. The material is pre-punched by the pre-punching device. The discs are fed automatically and brought into position by a steel belt pusher. The eyelets are also automatically fed and automatically inserted into the material together with the discs. Depending on the material thickness, the pressure can be adjusted. Electronic disc sensing for level control in the feed rail. Disc feed can be switched off. With leading finger protection device, electric foot switch and piece counter. Technical data: Control cabinet with PLC-control Sorting drum drive: Electrically with minimum and maximum control Bottom parts feed: Pneumatic, can be switched off Performance: 80 cycles/minute Drive: Geared brake motor Sorting drive: Small gear motor Working height: Approx. 1000 mm Weight: Approx. 250 kg Space requirement: 850 x 600 x 1750 mm Air pressure: Approx. 6 bar Projection: 120 mm freely projecting Application examples: Paper and printing industry, textile industry, protective equipment, shoe industry, clothing industry, leather goods industry, tarpaulin and tent industry, etc.
