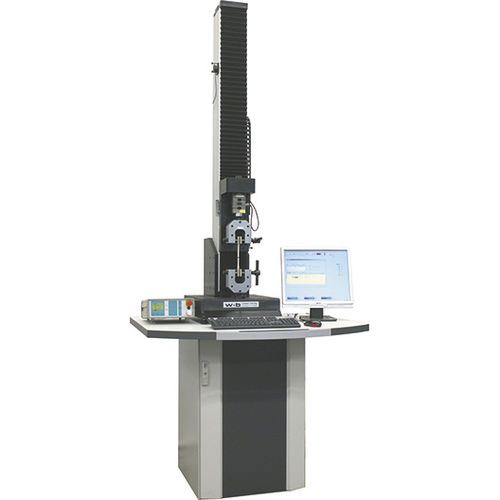

Universal testing machine LFM-L

computer-controlledmaterialsfor plastics

LFM-L Electromechanical Single-Column Machines The LFM-L Single-Column Systems are designed for testing of a variety of different materials, specimens or components where load requirements are low. This series is compatible with a wide range of accessories, grips and fixtures covering all relevant applications as testing of rubber, plastics, foils, films, textiles, adhesives, paper, foods, foams, timber, wires or other metallic or non-metallic specimens as well medical, electronic and other components. Key Features • - Rigid machine frame with high stiffness providing superior axial and lateral stiffness and guarantees robust, durable and long-term operation • - Precise linear modules with backlash-free ball screw assembly provides high load capacity, high positioning accuracy and repeatability • - Controlled by a high responsive servomotor to drive the mobile traverse (crosshead) providing faster starts and stops, best control, and highest accuracy at a extremely low noise level • - Additional guiding columns for increased lateral stiffness • - Compact and rigid extruded aluminium profile (frame) with T-slots to easy mount furnace or extensometer mounting brackets, digital hand wheel, cable duct, or any other accessories and attachments • - Spindle / linear module protected by corrosion-resistant steel strip over fully crosshead stroke • - Precision strain gauge load cell mounted on movable crosshead but also fits to lower base platen • - Digital displacement (movable crosshead) measuring system • - Upper crosshead can be mounted at several positions to optimize the vertical test space depending of used grip or fixture Standardized mounting stud (male) Ø20/8 mm to mount accesories
