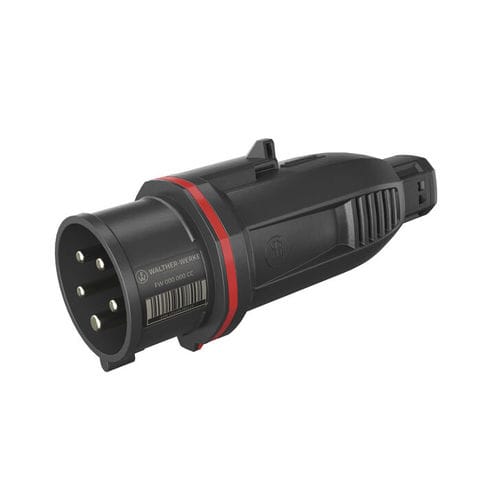

Movable electrical plug

IP545-polepush-in

Product overview
WALTHER CEE NEO plug One-Touch FW210506CC with screwless cage-clamp connection. Rated current 16 A, 5-pole, 6 h clock position, IP54 protection and red color code. Housing material PA6; high heat-resistant contact carrier in PA66; contact material CuZn. Successor to item 210SL.

Item information

• Item number: FW210506CC
• GTIN / EAN: 4015609049110

Technical data

• Rated current (IEC): 16 A
• Rated voltage: 415 V (CEE indication 400 V)
• Number of poles: 5
• Clock position: 6 h
• Protection rating: IP54
• Housing material: PA6
• Contact carrier: PA66 (high heat resistance)
• Contact material: CuZn
• Connection type: screwless terminal (cage-clamp)
• Color code: red
• Strain relief: automatically activating
• Conductor cross-section (flexible): 1 - 2.5 mm²
• Conductor cross-section (solid): 1.5 - 2.5 mm²
• Sheath length L/N: 50 mm; PE: 60 mm; Stripping length (min): 9 mm
• Flammability housing: V2; contact carrier: V0
• Rated frequency: 50-60 Hz
• Current per UL/CSA (if UL version): 20 A
• CE conformity: yes

Logistics

• Net weight: 0.213 kg
• Packaging quantity (VPE): 10
• Net dimensions (L×W×H): 135 × 75 × 65 mm
• Gross weight VPE: 2.242 kg
• Country of origin: DE
• Tariff code: 85366990

Regulations / Certificates

• WEEE reg. no.: DE 22131895 (small device <50 cm)
• VDE: 40049056
• UL-Classified (43EA): E188992
• GTIN / EAN: 4015609049110
