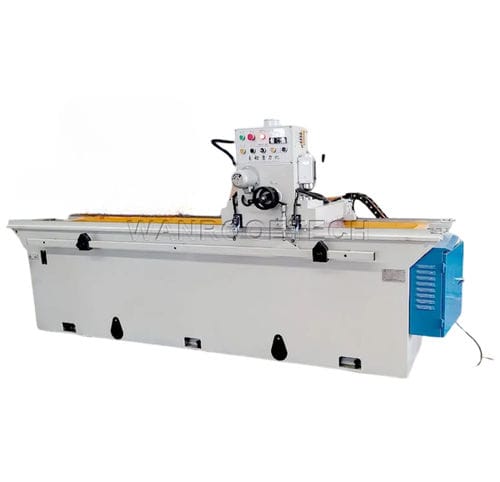

Knife sharpening machine PNMD-B series

for bladesautomaticautomated loading/unloading

Knife sharpeners are mainly used in: sharpening centers, forestry industry, printing plants, paper and plastics, book printing centers, medium-sized knife sharpening rooms and other institutional enterprise users. It is suitable for the processing of various straight-edged tools, mainly crusher blades, wood rotary cutter sharpeners, etc. Description: The machine body is made of double-layer welding of 10mm high-quality plates; the grinding head motor is a standard Y series motor, the grinding head grinding wheel can be fed manually or automatically, and the rising and falling are in the form of a ball screw; the sliding table is driven by a rack and pinion; The work table is a new S-type electromagnetic chuck, which can rotate 0-360 degrees; the grinding head box is equipped with a centralized refueling device, which can centrally lubricate the driving part of the grinding head. The guide rail of this model is of ordinary wear-resistant steel belt type, which can be easily replaced. The model can also choose linear guide device or numerical control device. Structure of the Sharpener: The machine body is made of high-quality 10mm-23mm plates and double-layer welding to avoid deformation of the machine body during long-term operation of the equipment and affect the accuracy of sharpening.
