Communication gateway

IoTKNXModbus TCP/IP

Overview
Centralize equipment data and simplify building integrations with a plug & play multi-protocol connectivity gateway. The solution combines on-premises hardware and a web-based console to break data silos, enable secure interoperability and accelerate deployment of building services and third-party apps.

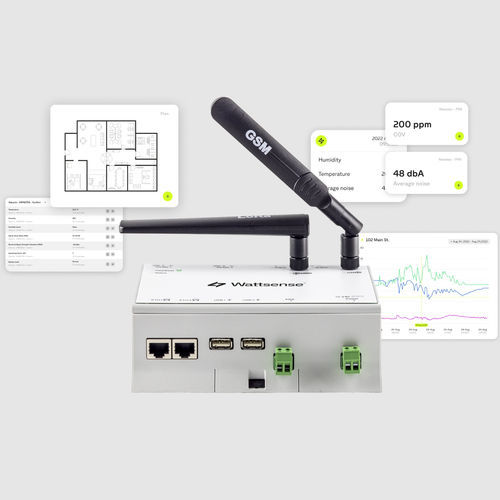

The Box
A DIN/elec-cabinet compatible multi-protocol hardware device supporting major industrial and building protocols. Designed for fast installation (typically <1 day), secured connectivity and higher processing capacity than standard gateways.

The User Console
A web-based interface that enables rapid equipment onboarding via a configuration wizard and an extensive device library. The console centralizes data, provides remote configuration, alarm management, dashboards, graphs and historical archives for operational teams.

Supported protocols

• LoRaWAN 1.0
• BACnet IP
• Modbus RTU
• Diematic
• M-Bus
• Modbus TCP/IP
• LPB
• KNX

Box specifications (extracted)

• CPU: 528MHz ARM Cortex A7
• Memory: 512MB RAM
• Storage: 4GB eMMC
• Operating temperature: 0°C to +45°C
• Power consumption: 5W
• Size: 160 x 110 x 95 mm
• Weight: 350–385 g
• Humidity: 5% to 95% (non-condensing)

How it works

• Step 1: Install the box — mount in the electrical cabinet and connect to local networks and equipment.
• Step 2: Configure your equipment — use the Wattsense User Console with the configuration wizard and device library for fast setup.
• Step 3: Deploy services — publish Smart Building apps via REST API or integrate/upgrade a BMS for centralized management.

Products available with the same hardware

• Wattsense Bridge — on-premises or private-cloud data collection with live data, configuration and logs.
• Wattsense Tower Control — remote monitoring and automation with alarms, schedulers, dashboards, graphs, archives and logs.

Technical characteristics / specifications

• Multi-protocol support: LoRaWAN 1.0, BACnet IP, Modbus RTU, Modbus TCP/IP, M-Bus, Diematic, LPB, KNX
• Processing: 528MHz ARM Cortex A7
• RAM: 512MB
• Storage: 4GB eMMC
• Power consumption: 5W
• Dimensions: 160 x 110 x 95 mm
• Weight: 350–385 g
• Operating temperature: 0°C to +45°C
• Relative humidity: 5% to 95% (non-condensing)
• Device library: >800 decoded devices available for rapid configuration
• Features: plug & play installation, remote configuration, OTA updates, equipment compatibility library, REST API for integrations
