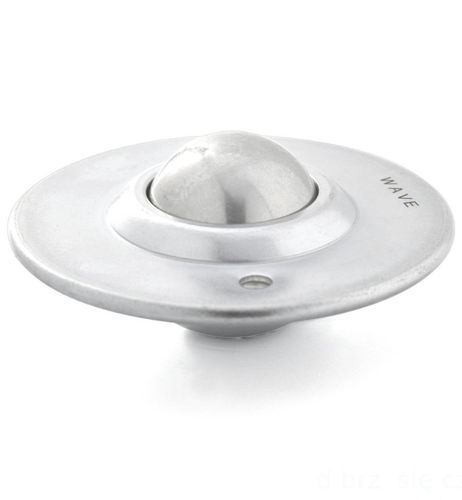

Steel ball transfer unit KU-16 B

flanged

Frog eye transport balls KU-B is a series that enjoys wide interest. Easy assembly makes it often chosen by designers. The transport ball transfers a load of up to 15 kg no faster than 1 meter per second. The housing is pressed from sheet steel then protected against atmospheric factors by galvanizing significantly extends its durability. High-quality steel balls are pressed inside the housing, which facilitates smooth movement of components on the ball table top. Light balls versions mounted in the ball table with two screws, heavy with three screws. • Libra : 0.04 kg • Ball material : steel • Fixing method : screwed on • Ball diameter in mm : 16
