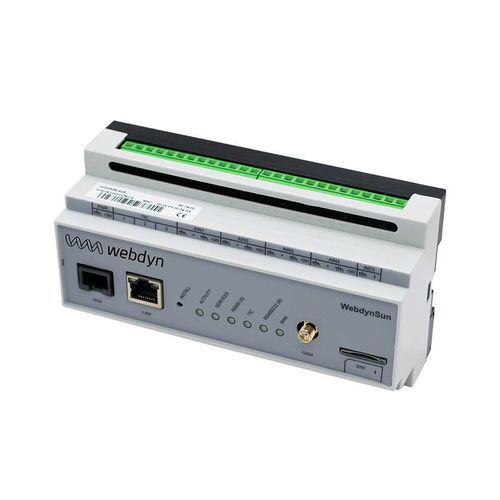

Communication gateway WebdynSun

telemetryIoTGPRS

Product overview
The WebdynSun gateway monitors and collects performance and environmental data from solar plants. It aggregates indicators from inverters, electricity meters and environmental sensors (irradiance, temperature, wind speed, etc.) into CSV format and transmits them periodically via 4G/2G mobile networks, Ethernet or PSTN to a central server. Installation and configuration are performed via the embedded web server and can be executed locally or remotely. The gateway also supports remote-controlled local actions initiated by the central platform.

Main Features - Hardware

• 4G connectivity
• RS485 / RS422 interfaces
• TIC (meter) support
• Analog inputs
• Digital I/O
• Ethernet port
• DIN-rail mounting

Main Features - Software

• Plug & Play deployment
• Remote configuration and management
• Alarm generation and reporting

Strengths & Benefits

• Rapid plug & play commissioning
• Monitors up to 200 inverters per gateway (dependent on models and brands)
• Compatibility with a wide range of market inverters
• Very low mobile data consumption
• Parameter aggregation at a single point for simplified supervision
• Real-time monitoring and visualization
• Improved electricity production efficiency
• Supports Modbus and SunSpec protocols commonly used in PV applications

Applications

• Real-time monitoring of electricity production from solar plants
• Preventive and corrective remote maintenance

Specifications (network & data rates)
WebdynSun 4G
4G: LTE-FDD B1/ B3/ B5/ B7/ B8/ B20/ B28; LTE-TDD B38/ B40/ B41; 2G: GSM B2/ B3/ B5/ B8
LTE-FDD Data Rate (Mbps): 10 (DL)/ 5 (UL)
LTE-TDD Data Rate (Mbps): 7.5 (DL)/ 1 (UL)
GPRS Data Rate (kbps): 85.6 (DL)/ 85.6 (UL)
EDGE Data Rate (kbps): 236.8 (DL)/ 236.8 (UL)

Interfaces

• 4G connectivity
• 1x RS485
• 1x RS485/RS422
• 3x TIC meters
• 4x analog inputs
• 6x digital inputs
• 2x digital outputs
• 1x Ethernet

Connectors

• 1x SMA F connector: GSM antenna
• 1x RJ45: Ethernet
• 2x terminal blocks: power, RS485/422, TIC, analog inputs, digital I/O
• 1x miniSIM card holder

Technical specifications

• Status LEDs
• DIN-rail mounting
• DC input: +12 to +24 Vdc
• Power consumption: 4 W max.
• Operating temperature: -5 °C to 50 °C
• Storage temperature: -20 °C to 85 °C
• Dimensions: 157 x 86 x 59 mm
• Weight: 300 g
• Certifications: EMI EN55022 class B; CE: EN50082
