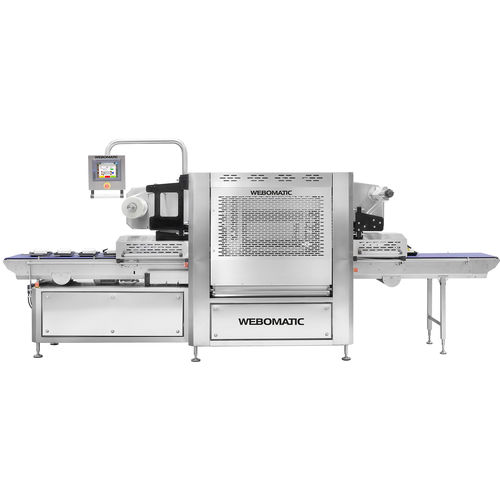

Linear array tray sealer TL 550

automaticvacuumwith modified atmosphere packaging

The fully automatic TL 550 tray sealer is the convincing packaging solution for rising packaging requirements. Thanks to the standard MAP and vacuum technology, the TL 550 tray sealer is particularly suitable for packaging fresh meat and other food products that need prolonged shelf life. To enter the world of fully automated tray sealing, the TL 550 is a great start. Its compact external dimensions in combination with packaging efficiency and size predestine it for up to medium production capacities. External machine dimensions: 4.525 x 1.090 x 1.685 mm (W x D x H) Tray materials: e.g. PP, EPS, A-PET, C-PET, rPET, PLA, cardboard and paper-based trays, aluminium Tray formats: Mono: 520 x 325 x 120 mm Duo: 520 x 150 x 120 mm Control unit: Mitsubishi PLC Capacity: up to 15 cycles/min. Top film width: max. 380 mm Cooling water: not necessary Vacuum pump: External • WEBOMATIC Servo-drive technology (SDT) • Duo-Versions • WEBOMATIC Twin-Use • WEBOMATIC Single Cavity Control (SCC) • skin packaging variations • die set trolley • die set rack • photo cell / print mark control for printed top film • user identification pins • communication module for remote diagnosis and maintenance • separator • gas mixing unit • preheating • other peripheral devices upon request, e.g. tray denester, dosing system, labeling systems, lid application, etc.
