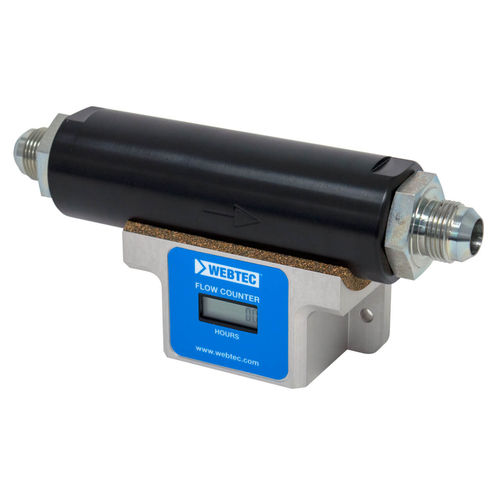

Time counter RFS200

digitalhydraulicIP66

Ideal for recording the time that the equipment is operational in the hire market, apportioning use of shared hydraulic tools between many users or accurately monitoring the service interval of attachments. The run time meter is activated by the passage of hydraulic fluid and allows precise monitoring of system usage. Perfect for system and safety critical applications so that maintenance can be conducted on a work done basis rather than machine hours. Maximum Rated Pressure: Up to 420 bar, 6,000 psi Maximum Rated Flow: Up to 200 L/min, 52 US gpm Ambient Temperature Range: -20 to 50°C, -4 to 122°F Fluid Temperature Range: -20 to 100°C, -4 to 212°F Compatible fluid: Mineral oils to ISO 11158. Other fluids consult sales office. Porting: BSPP, SAE Material: Body Material: Aluminium 2011T6 Internal Material: Stainless Stell and Brass Seal: FKM IP Rating: Designed for IP66
