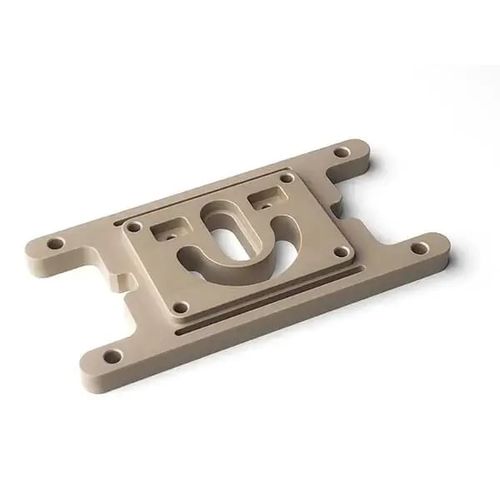

PEEK machining

for the aerospace industryCNCISO

OUR SERVICES INCLUDE PEEK CNC MACHINING ON INDUSTRIAL GRADE PEEK. IT OFFERS 100% INFILL AND TIGHT TOLERANCES FOR THE MOST DEMANDING INDUSTRIAL APPLICATIONS. PROS Dimensional accuracy High temperature resistance Very high specific strength Flame retardant UL94 V0 Food contact certified CONS Tool marks could be visible Limited geometric freedom High cost Limited maximum part size MAIN FEATURES Process: CNC machining Tolerance: ISO 2768-1 fine (f) or medium (m) class. Info Max size: 500x450x55mm 19,6x17,7x2,2in Lead time: <3 days As part of our CNC machining services, we offer not only a peek 3D printing service but also a Peek CNC service. Peek plastic, or polyetheretherketone, is a high quality and high performance material that is a technologically advanced semi-crystalline thermoplastic, with very high mechanical properties and high temperature resistance. It offers excellent mechanical and chemical resistance and dimensional stability. Machining peek parts with CNC milling reduces morphologies but offers better performances. It resists up to 260° in hot water or steam. The heat resistance decreases when under load, withstands minimum temperatures down to -60 °C and is a self-lubricating material. Hardly flammable and self-extinguishing material (V0). It is also abrasion resistant Suitable for contact with food. Hazelnut colour. Application sectors: Peek material com be used on food, aerospace automotive, chemical, electronics, nuclear, medical, and defense applications. How strong is Peek? Can it be used as a metal replacement? Peek parts have a higher tensile strength than metals like aluminum or steel and is resistant to heat, chemicals, and moisture.
