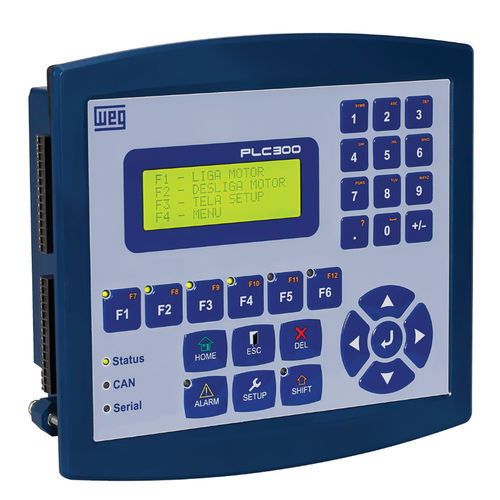

Compact programmable logic controller PLC300

inputsEthernetCANopen

The PLC300 is a PLC developed to meet the requirement for a user interface on panels and machines, and a full expandable PLC at the same time. It has high processing speed, great memory capacity, five built-in communication ports and HMI (optional). Main characteristics 10 digital and 1 analog built-in inputs, 9 digital (1 fast) and 1 analog built-in outputs; Possibility of digital and analog I/O expansion via CANOpen network; I/O expansion modules of the CFW11; Built-in encoder input (100Khz); Communication interface: Modbus-RTU (Master), CANOpen (Master); Up to 240 screens programmed by the user; Programmed in ladder language using the WPS free software application (Weg Programming Suite); Front HMI and possibility to customize the membrane (available in the version with built-in HMI - HPC and HSC models); Back display for the back panel version (BP and BS models); Built-in USB port to communicate with the computer; Internal flash memory; Battery voltage monitoring; Ethernet Modbus-TCP Port; SD card port; Communication with the PWS line of graphic HMIs (3.3 to 15”). Flexibility and Performance The PLC300 is a robust and complete PLC, developed to meet the necessities to control machines and small industrial processes. With a compact size, it offers excellent cost effectiveness, possibility of expansion, and high processing speed, in addition to a great memory capacity and five built-in communication ports, enabling the PLC300 to be the master of networks such as CANopen, Modbus-RTU and Ethernet Modbus-TCP/IP.
