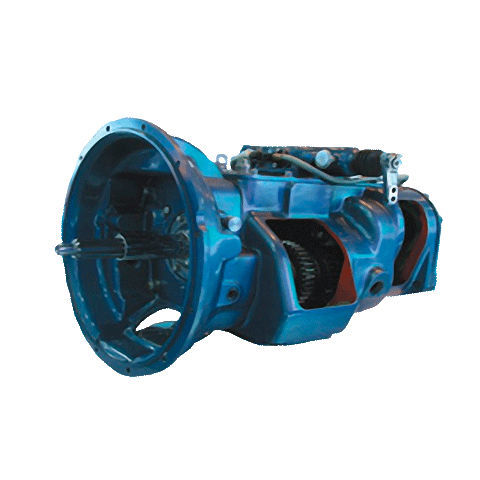

Utility vehicle automatic vehicle transmission 9JSS series

utility vehicle automatic vehicle transmission
utility vehicle automatic vehicle transmission
Add to favorites
Compare this product


Characteristics

Options
for utility vehicles
Torque

1,800 Nm, 2,200 Nm, 2,600 Nm
(1,327.6119 ft.lb, 1,622.6367 ft.lb, 1,917.6616 ft.lb)

Description

■Twin countershaft in main case, tri-countershaft in auxiliary case; power split, large load capacity and high reliability. ■Mainshaft and gears on it are floating, no needle bearings between the gears and the shaft and high efficiency in power transfer. ■Gears adopt thin-and-fine teeth design (contact ratio ε>2), smooth engagement and low noise. ■Fully synchronized: in main case, double taper faced synchronizer, large synchro-capacity and flexible in gear shifting; in auxiliary case, lock-pin synchronizer, high-performance & non-metallic friction material for friction taper surfaces and high reliability. ■Large range of gear ratios meets different road conditions, and strong climbing ability. ■Combined design of main and auxiliary cases, small ratio steps and good fuel efficiency. ■A variety of forms for power taking-off meet different power-output demands of all refitted trucks. ■Single H or double H, single-lever or double-lever operating mechanism can be realized.
