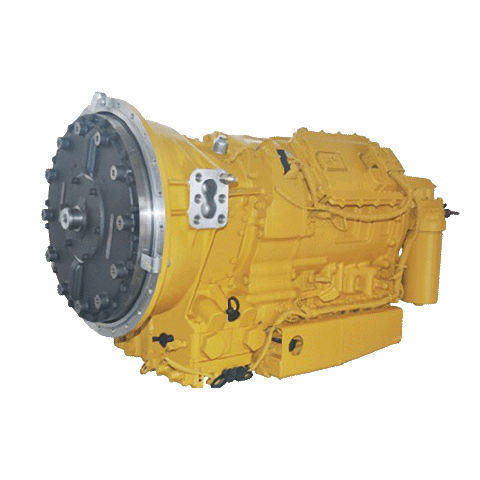

Truck automatic vehicle transmission FC6A210/250

Add to favorites

Compare this product

Go to the Weichai Power Co., Ltd. website for more information

Characteristics

Options

for trucks

Power

294,000 W, 331,000 W, 360,000 W, 380,000 W, 410,000 W

Torque

1,937 Nm, 2,000 Nm, 2,983 Nm, 3,322 Nm, 3,525 Nm
(1,428.6579 ft.lb, 1,475.1243 ft.lb, 2,200.1479 ft.lb, 2,450.1815 ft.lb, 2,599.9066 ft.lb)

Rotational speed

Max.: 2,500 rpm
(15,707.96 rad.min-1)

Min.: 600 rpm
(3,769.91 rad.min-1)

Description

- SAE J1939 communications with vehicle systems, including: ■ Engines ■ OEM dashboards ■ Antilock braking systems ■ Traction control systems ■ Caterpillar ET service tool - Electronic drivers and switch inputs ■ PTO operation ■ Starter interlock ■ Backup alarm ■ Range and speed indication - Shift Selector ■ 6 button, dual display ■ Lever, dual display - Cat Messenger Display compatibility ■ Transmission and engine status display ■ Transmission and engine diagnostic display ■ Reprogramming of selected engine and transmission customer parameters - Customer Parameter Programming ■ PTO functions ■ Range selection inhibits ■ Special vehicle operation modes ■ Engine retarder operation modes ■ Electronic Control Unit (ECU) ■ Electronic data link, SAE J1939, SAE J1587 ■ Electrical system 12V, 24V ■ Integral torque converter ■ Oil filler tube/dipstick location right ■ Oil level sensor ■ SAE No.1 bell housing ■ Cat Messenger Display ■ Oil filter options: transmission or remote mounted cartridge available
