Surface geophone

horizontalverticalindustrial

Overview

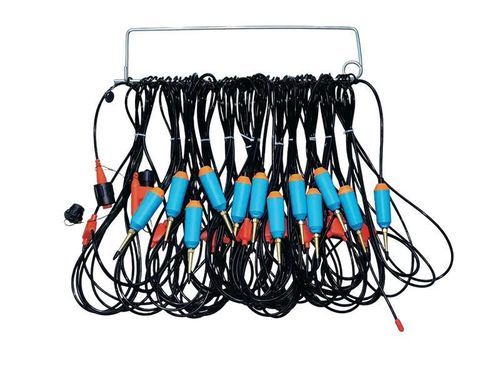

VM series marsh geophone string designed for seismic data acquisition in marshes, shallow-water and coastal zones. Compact and lightweight design facilitates field deployment and maintenance. Waterproof and corrosion-resistant construction suitable for varied water environments.

Product category

• Marsh geophone string
• Model: VM series

Key features

• Waterproof design for immersion in 6–10 m depth
• Insulation resistance ≥ 200 MΩ after 48 hours immersion at 6–10 m
• Compact, lightweight construction for easy field handling
• Corrosion-resistant materials for marine and coastal environments
• Customizable colors, configurations and technical specifications on request

Applications

• Marsh and swamp seismic surveys
• Shallow-water and coastal seismic exploration
• Petroleum and geological seismic acquisition in shallow marine zones

Customization & ordering information

• Colors, cable configurations and specifications can be tailored to customer requirements
• Please specify required immersion depth, cable length and connector type when ordering
