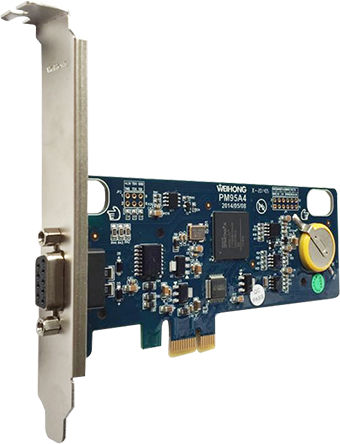

Communications controller card PM series

PCIe

CNC SpecificationNumber of Axes Supported 3-5axes Control Signals Pulse Frequency 1MHzControl Mode Position control Control Signal Differential signals Position Signal Type Pulse+Direction Communication External PCI-EInteractive with Lambda PHOENIX bus Spindle Analog Voltage Output 0-10V Tool Measurement Tool Measurement Mode Fixed calibration, Mobile calibration, First calibration & Calibration after tool change Compensation Compensation Type Screw error compensation, Backlash compensation, AQE compensation, Tool compensation Toolpath FileSupported File Format *.g/*.nc/*.u??/*.demo/*.iso/*.eng/*.cut/*.dxf/*.plt/*.txt OperationsWCS Supporting WCS G54-G59 and Work Zero saving Processing Technology Array, Mirror&rotate, Cycle machining Convenient Operation Handwheel guide, Breakpoint resume, Tool selection High-speed High-precision Optimization Interpolation Algorithms T-type, S-type and LEP algorithms Software Language Chinese,English Safety & Reliability Sofeware Alarms Alarms of program error, operation error, over-travel error, PLC error, and IO communication error
