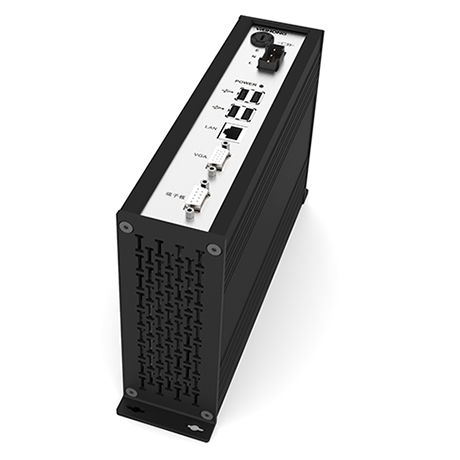

Box PC NC65Cindustrialmeasurementfor CNC machines
Add to favorites
Compare this product
Characteristics
- Type
- box
- Domain
- industrial, measurement, for CNC machines
Description
CNC Specification
Number of Axes Supported
3-5axes
Control Signals
Pulse Frequency
2.17GHz
RAM
2GB
Control Mode
Position control
Control Signal
Differential signals
Position Signal Type
Pulse+Direction
Communication
Interactive with Lambda
PHOENIX bus
Spindle
Analog Voltage Output
0-10V
Tool Measurement
Tool Measurement Mode
Fixed calibration, Mobile calibration, First calibration & Calibration after tool change
Compensation
Compensation Type
Screw error compensation, Backlash compensation, AQE compensation, Tool compensation
Toolpath File
Supported File Format
*.g/*.nc/*.u??/*.demo/*.iso/*.eng/*.cut/*.dxf/*.plt/*.txt
Operations
WCS
Supporting WCS G54-G59 and Work Zero saving
Processing Technology
Array, Mirror&rotate, Cycle machining
Convenient Operation
Handwheel guide, Breakpoint resume, Tool selection
High-speed High-precision Optimization
Interpolation Algorithms
T-type, S-type and LEP algorithms
Software LanguageChinese,English
Safety & Reliability
Sofeware Alarms
Alarms of program error, operation error, over-travel error, PLC error, and IO communication error
