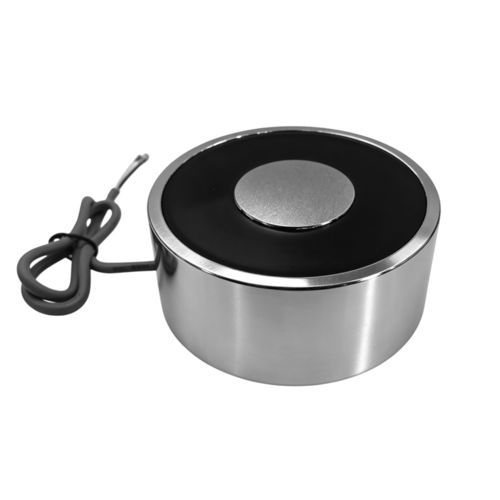

Holding magnet WL10043

assemblyelectronic equipmentfor workshop tools

Overview
DC holding electromagnets provide a stable magnetic holding force when powered by direct current (DC). Designed for intermittent or continuous industrial use, the WL10043 delivers reliable attachment of ferrous parts in automated systems, fixtures and handling equipment. Compact dimensions and standardized mounting simplify integration on production lines.

How it works
When DC voltage is applied, current flows through the copper coil producing a magnetic field in the iron core and housing. Contact with a metal surface completes the magnetic circuit and maximizes holding force. Holding performance depends on coil power and current, magnetic material, contact area and air gap, as well as operating temperature and voltage stability. When power is removed the magnetic field collapses and the part is released.

Highlights

• High holding force (specified 340 kg)
• Compact footprint and standardized M10 mounting
• Low acoustic emission during operation
• Designed for long cycle life in industrial environments
• Available in multiple rated voltages and power options
• Custom voltage and force configurations on request
• Precision machining and coil winding with quality testing

Main applications

• Robotic end-of-arm tooling and fixtures
• CNC jigs and quick-clamping fixtures for machining and inspection
• Security locks, automatic doors and access control systems
• Lifting and handling attachments for controlled pick-and-release
• Medical positioning devices requiring vibration-free hold
• Automated manufacturing and Industry 4.0 systems

Pros / Cons
Pros

• High holding force with accurate positioning
• Rapid response and silent operation
• No mechanical wear from moving parts
• Simple electrical integration into automation
• Long operational life under correct duty cycle

Cons

• Heat generation during continuous operation requires thermal consideration
• Holding force is dependent on DC supply—power loss releases hold
• Performance sensitive to surface condition and air gaps
• Higher initial cost versus some mechanical clamps
• Requires appropriate DC power and control circuitry

Troubleshooting (common issues & solutions)

• No power / no holding: verify wiring, input voltage and coil resistance
• Weak holding force: reduce air gap, clean contact surface, confirm rated voltage
• Overheating: check duty cycle, ensure correct voltage and improve heat dissipation
• Noise or vibration: check and tighten mounting, verify alignment
• Intermittent operation: inspect electrical connections and DC source stability

Technical datasheet (key table items)
Brand: Weilong Technology
Model Number: WL10043
Rated Voltage (V): DC 12V and 24V
Rated Power (W): 14–25W
Work Mode: Power on, magnet on.
Holding Force: 340 kg
Working duty: 10%
Resistance: 68 Ω
Service Life: 100 Thousand Times
Certification: CE, RoHS, ISO9001
Material: Superior Magnet Carbon Steel Housing
Lead Wire Length: 200 MM
Install Style: Screw Hole M10* 20MM
Tolerance of Dimension: ± 0.1 MM
Water-proof: Yes, IP50
Insulation Class: B
Hi-Pot Test: AC 600V 50/60Hz 2s
Non-excitation Holding Force: 0
Working Temperature: -10°C - 100°C
Duty Cycle: 1-10%
Thread Depth: M10 * Length 20 mm
Payment Term: TT, or LC at Sight
Sample Order: Yes.
Warranty: 1 Year
MOQ: 1000 pcs
Supply Ability: 5000 pcs per week
Delivery Time: 30 Days
Port of Loading: Shenzhen

Technical specifications

• Model: WL10043
• Brand: Weilong Technology
• Rated voltages available: DC 12V, DC 24V
• Rated power range: 14–25 W
• Holding force (stated): 340 kg
• Coil resistance (example): 68 Ω
• Lead wire length: 200 mm
• Mounting: M10 screw hole, depth/length 20 mm
• Protection: IP50 (water-proof)
• Insulation class: B
• Operating temperature range: -10°C to 100°C
• Duty cycle: intermittent (1–10%; typical 10%)
• Service life (stated): 100,000 cycles
• Certifications: CE, RoHS, ISO9001
• Warranty: 1 year
