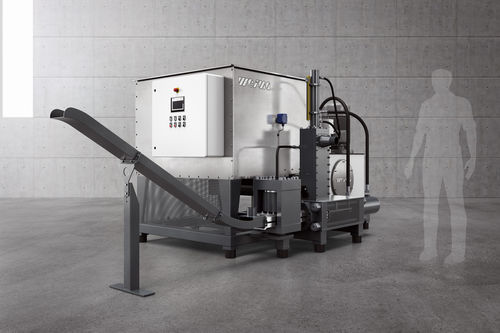

Biomass briquetting machine TH 1200

woodfor expanded polystyrenefor rectangular briquettes

The modular design of the TH 1200 allows exact adaptation to suit your existing premises or production conditions. Briquettes can be made from materials such as wood, polystyrene, foam, light alloy, paper or biomass – with throughput rates and briquette quality to meet high industrial demands (precondition: material residual moisture <= 18%). Nearly every individual solution can be achieved, e.g.: Duo, trio or quattro designs to increase throughput rates and availability of the machine. Shredded big bags briquetting with a WEIMA TH 1200 A WEIMA TH 1200 briquetting press compacts shredded big bags into solid briquettes. Large material hopper for more buffer volume The galvanized hopper, into which the material to be briquetted is fed either manually via a conveyor belt or a screw conveyor, is equipped with a rotating agitator and a discharge screw at the bottom. It is available in dimensions of 1,400 x 1,400 mm or 2,000 x 2,000 mm, depending on the required buffer volume. The machine can be used in automatic mode by means of fill level monitoring. WEIMA WLK 1000 single-shaft shredder shreds packaging foam, which is then pressed into solid briquettes by a TH 1200 briquetting press. Non-stop briquetting thanks to standard oil cooling TH Standard S machines are equipped with hydraulic oil cooling as standard. This allows the briquetting press to be used for multi-shift, automated operation. Convenient operation with advanced Siemens PLC control We manufacture all briquetting press control cabinets ourselves in our German plants in Ilsfeld, Abstatt and Annaburg. For this purpose, we use only brand-name components – and this also applies to our machine control system.
