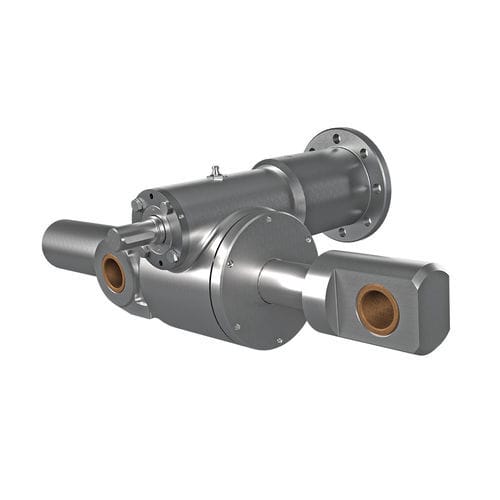

Pivoting screw jack W-SJK

trapezoidal screwworm gearbevel gear

Custom-engineered to adapt perfectly to every industrial application. The use of pivoting mechanical screw jacks is suitable for applications with load movement along an arc. CHARACTERISTICS - Execution full Stainless Steel, Cast Iron-Stainless Steel or Cast Iron-Steel. - Sizes from 5 kN to 1500 kN, nominal. - Operation can be either manual or motorized. - Worm screw/gear or two pinion bevel gear screw. - V-thread or ball bearing work screw. - Can be combined with hydraulic piston. Equipment - Diameters, pitches and end dimensions on request. - Anti-Backlash feature and anti-rotation system. - Additional guides and mechanical stops. - Special screw to wheel ratios. - Centesimal dial indicator for direct stroke reading. - Centesimal dial indicator for direct stroke reading. - Swinging mounting features. - Conventional and special hand operated hand wheel with gravitational dial indicator or ratchet. - Supports or coupling for direct motor assembly. - Gear reducers, transmission shafts and couplings for dual or multiple connections.
