laser welding system / arc / automatic / integrated
AWS-300 / 6100

{{requestButtons}}

Characteristics

  • Technique:

    laser, arc

  • Operational mode:

    automatic

  • Other characteristics:

    integrated, custom, horizontal, precision, vertical

Description

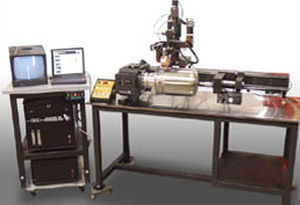

This AWS-300 / 6100 Advanced Welding System was manufactured to provide a fully Automatic Circumferential welding cell. The part purge time and multipass weld time could run up to 10 minutes per part. The customer required minimal labor content and 100% yield.Weldlogic Engineers provided a fully integrated AWS-300 with quick purge and a Laser Seam Tracker to insure precise torch positioning over the weld seam and enable the operator to perform other tasks during the entire welding operation.The Weldlogic System components:• AWS-300 Advanced Welding System• Arc Voltage Control• PWL-15-36 Precision Welding Lathe• Laser Seam Tracker / Monitor• 2 Axis of Joy Stick Torch Positioning• Live Center tail stock with Gas Purge• Retractable Torch / Tail Stock – Air Actuated• 3 Axis of Laser Tracking Adjustment• Horizontal / Verticle Lathe Positioning
