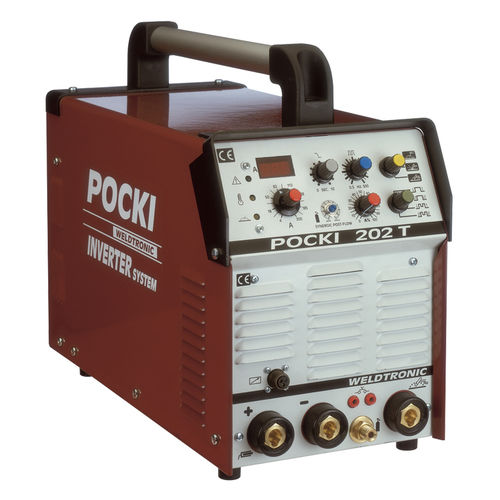

Dc welding inverter, complete with HF & pulser, for Tig and electrode welding
Stepless welding current adjust from 4 to 200 amps
Separate controls for base current and puised current
10% line voltage compensation
Electronic HF pulse generator providing limited electric
noise
Vertical characteristic (constant current independent of arc length)
Digital ammeter with automatic commutation: preset
current/welding current
Selector for: ELECTRODE / TIG - LIFT-ARC / TIG - HF
Selector for: 2 STROKES / 4 STROKES
Stepless adjust of pulses frequency from 0.5 to 500 Hz
(PULSED-TIG)
Automatic commutation on remote control insertion
Down slope stepless adjust (0 ÷ 10 secs.)
Gas pre-flow internally adjustable
