2-pole switch L series

IP67IP65DC

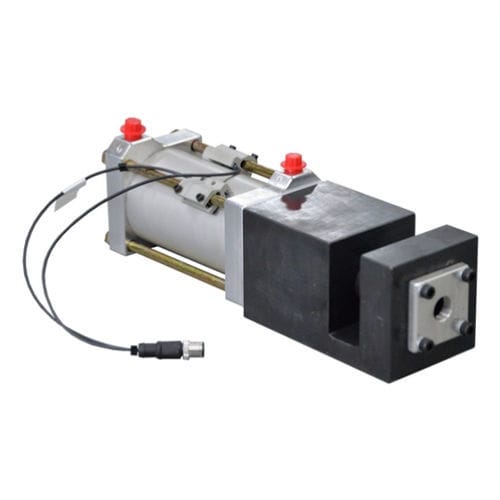

Cylinder Switches L3 is a solid state dual sensor switch, immune to the majority* of direct and alternating field welding applications. Interchangeable with World Switch in function and performance IP 65 / IP 67 rated for harsh environments Short circuit & overload protected Mounts easily to T-slot and tie rod cylinders 4-wire M12 DC connector, N.O. PNP output Weld spray resistant cable covers *Note that some mid and low frequency DC resistance applications (i.e. aluminum resistance welding applications) may cause a fault. In these applications, it is recommended that the sensor be ignored/bypassed during the welding cycle. L5 is a single sensor switch, N.O. NPN (not weld field immune) 3-wire M12 DC connector. Two switches are installed per cylinder.
