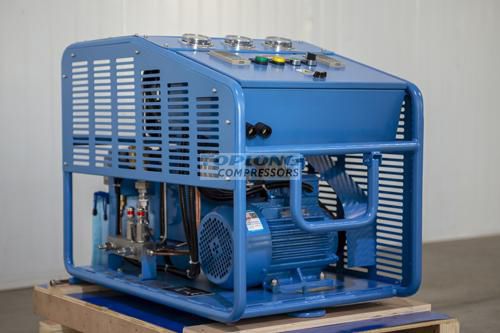

Reciprocating compressor Gow-3/4-150for oxygenelectrically-poweredportable
Add to favorites
Compare this product
Characteristics
- Technology
- reciprocating
- Type
- for oxygen
- Power source
- electrically-powered
- Portability
- portable
- Lubrication
- oil-free
- Applications
- for bottles
- Other characteristics
- compact, low-noise, air-cooled, water-cooled
- Pressure
Max.: 4 bar
(58.02 psi)Min.: 0.8 bar
(11.6 psi)- Flow
Max.: 3 m³/h
(105.94 ft³/h)Min.: 0.18 m³/h
(6.36 ft³/h)- Power
Max.: 2.2 kW
(2.99 hp)Min.: 0.75 kW
(1.02 hp)
Description
bottle for cylinder filling oxygen compressor plant
Product Item：Gow-3/4-150
silent working
8 hours heavy duty working
CE and iso 9001
30 days for ETD time
bottle cylinder filling oxygen compressor supplier parameters:
1. Principle: Oil-free reciprocating piston
2. Cooling type: air or water cooling
3. Power consumption: ≤55kw
4. Speed: 300-560rpm
5. Flow rate: ≤800Nm3/h
6. Inspiratory pressure: 0-0.5Mpa
7. Exhaust pressure: ≤30Mpa
8. Compression level: 1-4
Main features of cylinder bottle filling oxygen compressor products:
All oil-free lubrication is clean and non-polluting.
High efficiency and low energy consumption.
High reliability, continuous operation for 24 hours.
The unit is air-cooled or water-cooled to reduce installation costs.
Compact structure, low operating and maintenance costs.
cylinder bottle filling oxygen compressor parameters:
TECHNICAL PARAMETERS
POWER RANGE：0.75-2.2KW
SPEED RANGE：200-400rpm
FLOW RANGE：0.18-3Nm/h
INLET PRESSURE RANGE：0.08-0.4MPa
OUTLET PRESSURE RANGE：15MPa/20MPA/23MPA
COMPRESS STAGE：2STAGE
COOLING DOWN METHOD：Wind cooling
