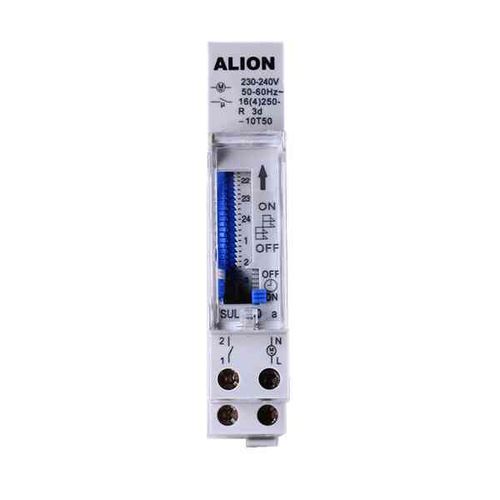

Analog time switch SUL180a

DIN rail

The SUL180a/SYN160a analogue miniature time switches are the smaller time switch,Similar to the appearance of MCB 1P. It can easy to change the battery and switching 3 positions with continuous ON/AUTO/continuous OFF. Description: - Analogue time switch - 1 channel - Screw terminals - Manual switch with 3 positions:Permanent ON/AUTO/permanent OFF - Switching status display - Daily program - With power reserve (exchangeable NiMH rechargeable battery) - 96 switching segments - Quartz controlled - Shortest switching time: 15 minutes Technical Data: Operating voltage 230-240 V AC Frequency 50-60 Hz Width 1 module Installation type DIN-rail Program Daily program Power reserve – 3 days Max. switching capacity at 250 V AC, cos φ = 1 16 A Max. switching capacity at 250 V AC, cos φ = 0.6 4 A Shortest switching time 15 min Programmable every 15 min Time accuracy ≤ ± 1 s/day(Quartz) Power consumption 1 VA Type of protection IP 20 Protection class II in accordance with EN 60 730-1 Ambient temperature –10 °C ~ +50 °C
