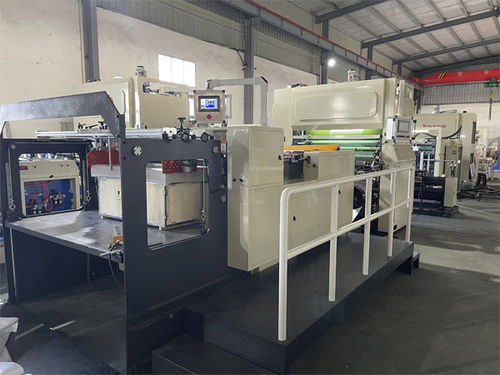

Knife cutting machine ZFM-1500JZ

for paperpaper coreCNC

The ZFM-1500JZ series machine is a customize size sheets cutting machine. It also be called roll to sheets cutting machine,paper sheeter machine,cutting slitting machine for cutting various length and width sheets for the printing and packaging industry products producing. Configuration & Functions 1. Shaftless Unwinding: The unwinder adopts shaftless feeding system that both suitable for 3inch and 6inch paper core and could support big jumbo roll. Shaftless unwinder is easy for loading and unloading. 2. Compact machine structure design that would easy for cross the paper materials in machine and save the materials waste. 3. Ultrasonic web guide system. Adopt sensitive ultrasonic web guide system make sure material cut in high precision 4.Teflon coated drying roll: Exclusive treatment of drying roll with Teflon coating that make the roll surface smooth and glue stickless. Compare with chrome plate, the temperature will more balanced. 5.Double metal roll glue coating system: High precision treatment double rolls coating system with Rubber blade (metal blade) that could available for various glue, and also save a lot glue (3-4g/m2) 6. Drying and Heating System: Bulk 800mm diameter drying roll with Teflon coating, that could bring the highest glue drying effect, large heating roll by electromagnetic heating plus oil heating, guarantee the heating efficiency and make sure laminating quality when run in high speed. 7.Main Machine Body: Thicken machine wall (25mm thickness) enhances stability and for long time service life.
