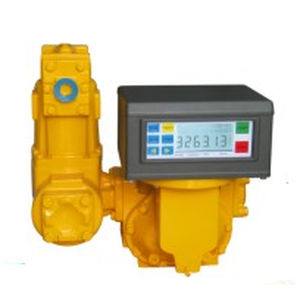

Vane meter / flowmeter

volumefor fuelfor oil

Technical performances: » Working voltage: AC 220V±20% » Working temperature: -20℃~+55℃ » Working humidity degree: ≤95% » Single totalizing count range： 0~999999 » General totalizing count range：0~99990000 » Flow rate 50~2000L/minute when working with different diameter flow meter. » Measurement precision: ≤0.1% » The oil inlet flange of the Explosion-proof solenoid valve is 4 holes, Φ18/Φ125. » It can matches with the variety pulsers to achieve the measurement of high-precision large flow. » It also can choose the subsection flow rate compensation and temperature compensation to improve the measurement precision. » It can achieve the control for the discretionarily refueling and preset refueling. » It can match with the printer, print the transaction records. » Automatically adjust function of meter. » Can connect to management system through communication box. Rotary vane pump - Installation: The pumps are widely used on mobile applications or fixde installations. With cardan shafts or hydraulic motor the pumps can be installed on any kind of tank truck or they are coupled to electric or diesel engine on metal bases to be used either on terminals,heavy duty dispensers, pumping/metering skids, mobile transfer units. Equipped with Teflon seals the pumps can also be used on a wide variety of solvents in the petrochemical industry. - Applicatin: Fuel oil delivery truck, Fleet refueling, Lrbe oil, Aviation refuelers, Transport of Petro Chemicals, gasoline, biofuels, solvents and many more.
