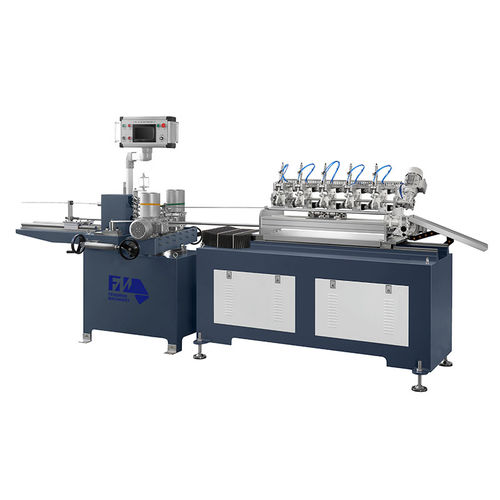

Drinking straw production machine FM-ZG

high-speed

Fengming FM-ZG high-speed paper straw machine integrates paper feeding, gluing, winding, cutting, conveying, and material receiving. Equipped with a CNC multi-knife cutting system, the finished paper straw can be cut online, suitable for 5-12mm diameter paper straws. 1. The machine is controlled by PLC, the host is equipped with frequency conversion speed regulation, the man-machine interface is a touch screen, the setting is simple, and the operation is convenient; 2. The cutting part adopts a servo multi-knife cutting system, and the servo motor tracks the cutting synchronously, with high precision, time saving and high efficiency; 3. Schneider is used for low-voltage electrical appliances, the use of electrical components is more stable and the service life is longer; 4. The main accessories are made of stainless steel to ensure product hygiene and environmental protection. Layers of paper 1-3 层 Inner diameter of coiled tube 5-12mm Coil wall thickness 0.3-1 mm Cutting length 100-800mm Reel speed 0-42meter/min Nose 2 Cutter 5 set Gluing method single-sided Power supply 380V/3Phase/50Hz Power 7.7KW (Main motor: 3KW, Servo motor: 1kw, Inverter 3.7KW) Host size 5600*1600*1750mm Floor space 11000mm * 6000mm*2000mm
