Liquid tank

for chemicalsfor the pharmaceutical industryfor low-viscosity materials

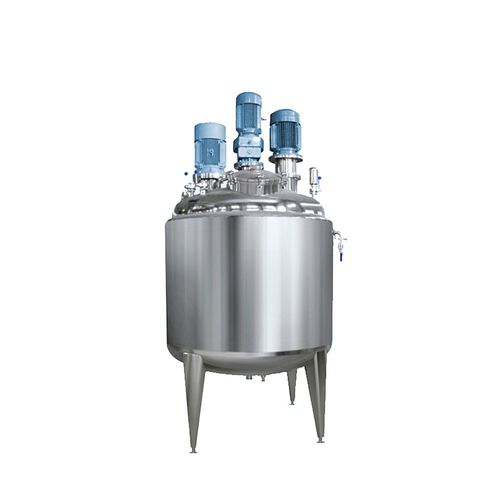

Product features and description 1.Stainless steel mixing tank with agitator has heating and heat preservation functions, and is manufactured, tested and accepted according to the Technical Conditions of Steel Welding Containers. 2.Stainless steel mixing vessels volume is available in various sizes from 100L to 20000L, and can be designed and processed according to the actual needs of customers. 3.The sealing of the mixing shaft adopts imported sanitary mechanical seal. The reducer adopts the world famous brand Germany Flander or SEW, and the stirring speed is 36-53/rpm. 4.The interface adopts the international standard ISO standard quick-loading chuck type, and the inner tank adopts imported SS316L or SS304. 5.Stainless steel blending tank has a liquid level gauge (contactless ultrasonic, static pressure transmission or glass tube type), air breathing apparatus, sterilization steam port, thermometer (digital display or dial type), CIP universal can washer, lamp Hole mirror, several inlet and outlet, manhole.
