LED indicator light J6-170QL

panel-mountvandal-proofIK 08

Product overview

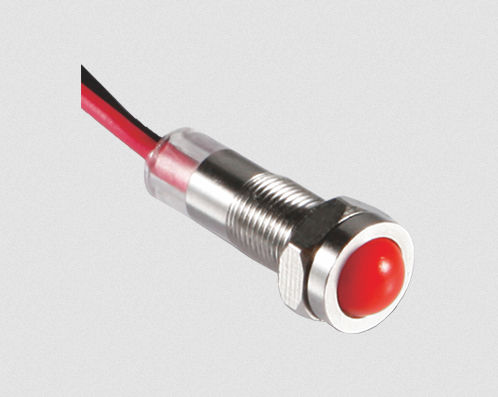

J6-170QL 6mm anti-vandal metal indicator light — a 6mm anti-vandal stainless-steel LED pilot/signal lamp from the J6 series for clear, at-a-glance status indication, suitable for indoor and outdoor use.

Key features

• 6mm panel cut-out, anti-vandal construction (SUS304 housing / SUS316 actuator)
• IP67 sealed: waterproof and dust-tight
• Impact resistant: IK08–IK10 (anti-vandal)
• High-brightness LED: red / green / yellow / blue / white or RGB (tri-color)
• Wide rated voltage range: 6V / 12V / 24V / 36V / 110V / 220V (AC/DC)
• Long service life: ≥ 50,000 h
• Certifications: CE, RoHS, UL, CCC, TÜV

Typical applications
Power, run, fault and status indication on machinery, machine tools, distribution boxes, outdoor equipment, transportation, medical and shipbuilding equipment.

Manufacturer
Manufactured by Wenzhou Jinhong (WZJH). OEM / ODM available.

Technical specifications

• Mounting diameter: Φ6 mm
• Series / Model: J6 / J6-170QL
• Housing material: stainless steel — SUS304 housing / SUS316 actuator
• Lamp type: LED
• Rated voltage: 6V / 12V / 24V / 36V / 110V / 220V (AC/DC)
• Light color: red / green / yellow / blue / white or RGB (tri-color)
• Degree of protection: IP67 (sealed, waterproof)
• Impact resistance: IK08–IK10
• Luminous life: ≥ 50,000 h
• Terminal type: solder lug / screw / wire-lead / PCB pin (specify)
• Operating temperature: -25°C to +55°C
• Operating humidity: 45–85% RH
• Certifications / approvals: CE, RoHS, UL, CCC, TÜV
