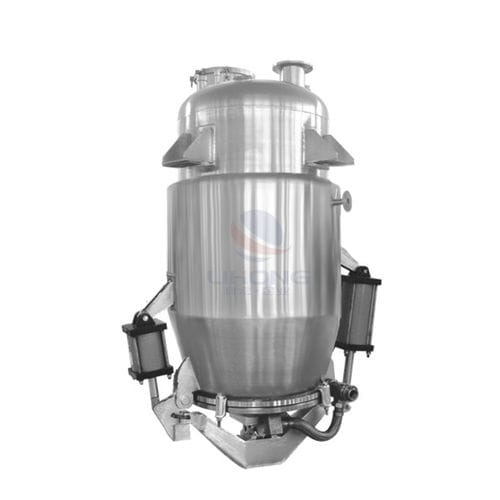

Cylindrical tank CTQ series Ultrasonic

for oilfor the pharmaceutical industryfor water

CTQ Multi-Functional ultrasonic Extraction Tank Application: Herb industry, dextrose, dairy industry, liquid food industry Material: SUS304 or SUS316L Type: with/without agitator Capacity: 500L ~ 15000L Steam heating or electricity heating Jacket PUF insulation Equip ultrasonic device for maintaining the activity opf the biological tissues and improving the uniformity of the extraction medium. Finish: Internal Mirror Polish, external Matt GMP standard Specification Model - TQ-0.5 - TQ-1.0 - TQ-2.0 - TQ-3.0 - TQ-6.0 - TQ-8.0 Full capacity(L) - 650 - 1200 - 2500 - 3500 - 6500 - 8900 Extractor Design pressure(MPa) - 0.09 Jacket Design pressure(MPa) - 0.3 Inlet diameter(mm) - 300 - 300 - 400 - 400 - 450 - 500 Heating area(m 2 ) - 2.4 - 3.1 - 4.2 - 5.5 - 7.1 - 9.5 Condensing area(m 2 ) - 3 - 5 - 5 - 8 - 10 - 12 Cooling area(m 2 ) - 1 - 1 - 1 - 1 - 1.5 - 1.5 Filtering area(m 2 ) - 0.25 - 0.25 - 0.25 - 0.25 - 0.5 - 0.6 Discharging diameter(mm) - 800 - 800 - 800 - 800 - 1000 - 1200 Consumption(kg/h) - 245 - 325 - 345 - 645 - 720 - 850 Container class - Class I Warranty: One year after receiving equipment, offer life long after sale service.
