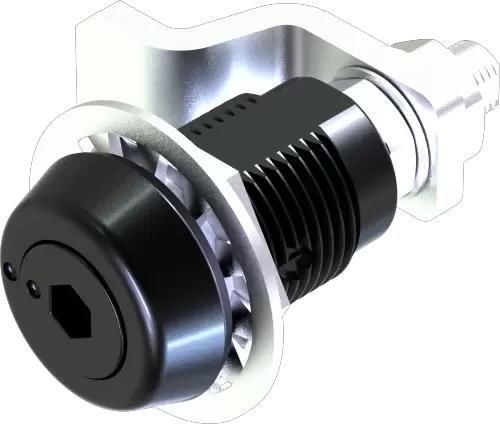

Compression latch 1421 Serieslockkeyright
Add to favorites
Compare this product
Characteristics
- Type
- compression, lock, key, right
- Material
- zinc
- Other characteristics
- adjustable
- Finish
- chrome
Description
Product Overview
The Compression Latch 1421 Series is a small size type latch with an adjustable grip range. It is designed for secure closure and enhanced protection against water and dust.
Key Features
Material
Panel Cutout
IP Rating
Finish
Variants (Part Numbers, Head Style, Grip-Range)
Part Number | Head Style | Grip-Range
1421-04-1510 | Tool-operated | 3.2-6.4
1421-04-2510 | Tool-operated | 6.4-9.5
1421-04-3510 | Tool-operated | 9.5-12.7
1421-04-4510 | Tool-operated | 12.7-15.9
1421-04-5510 | Tool-operated | 15.9-19
1421-04-6510 | Tool-operated | 19-22.2
1421-04-7510 | Tool-operated | 22.2-25.4
1421-04-8510 | Tool-operated | 25.4-28.6
1421-05-1510 | Slotted Recess | 3.2-6.4
1421-05-2510 | Slotted Recess | 6.4-9.5
1421-05-3510 | Slotted Recess | 9.5-12.7
1421-05-4510 | Slotted Recess | 12.7-15.9
1421-05-5510 | Slotted Recess | 15.9-19
1421-05-6510 | Slotted Recess | 19-22.2
1421-05-7510 | Slotted Recess | 22.2-25.4
1421-05-8510 | Slotted Recess | 25.4-28.6
1421-08-1510 | Knob Style | 3.2-6.4
1421-08-2510 | Knob Style | 6.4-9.5
1421-08-3510 | Knob Style | 9.5-12.7
1421-08-4510 | Knob Style | 12.7-15.9
1421-08-5510 | Knob Style | 15.9-19
1421-08-6510 | Knob Style | 19-22.2
1421-08-7510 | Knob Style | 22.2-25.4
1421-08-8510 | Knob Style | 25.4-28.6
1421-20-1510 | Key Operated | 3.2-6.4
1421-20-2510 | Key Operated | 6.4-9.5
1421-20-3510 | Key Operated | 9.5-12.7
1421-20-4510 | Key Operated | 12.7-15.9
1421-20-5510 | Key Operated | 15.9-19
1421-20-6510 | Key Operated | 19-22.2
1421-20-7510 | Key Operated | 22.2-25.4
1421-20-8510 | Key Operated | 25.4-28.6
Technical Specifications
The Compression Latch 1421 Series is a small size type latch with an adjustable grip range. It is designed for secure closure and enhanced protection against water and dust.
Key Features
- Tool lock insert, easy to open
- Sealed against water and dust
- Keyed Access, Anti-theft
- Left-Right Interchangeable, Convenient Replacement
- Compression locking, for enhanced security
- Adjustable grip range, multiple choices
Material
- Housing, Cylinder: Zinc die
Panel Cutout
- Other
IP Rating
- IP65
Finish
- Bright chrome plated
- Black Matte Powder Coated
Variants (Part Numbers, Head Style, Grip-Range)
Part Number | Head Style | Grip-Range
1421-04-1510 | Tool-operated | 3.2-6.4
1421-04-2510 | Tool-operated | 6.4-9.5
1421-04-3510 | Tool-operated | 9.5-12.7
1421-04-4510 | Tool-operated | 12.7-15.9
1421-04-5510 | Tool-operated | 15.9-19
1421-04-6510 | Tool-operated | 19-22.2
1421-04-7510 | Tool-operated | 22.2-25.4
1421-04-8510 | Tool-operated | 25.4-28.6
1421-05-1510 | Slotted Recess | 3.2-6.4
1421-05-2510 | Slotted Recess | 6.4-9.5
1421-05-3510 | Slotted Recess | 9.5-12.7
1421-05-4510 | Slotted Recess | 12.7-15.9
1421-05-5510 | Slotted Recess | 15.9-19
1421-05-6510 | Slotted Recess | 19-22.2
1421-05-7510 | Slotted Recess | 22.2-25.4
1421-05-8510 | Slotted Recess | 25.4-28.6
1421-08-1510 | Knob Style | 3.2-6.4
1421-08-2510 | Knob Style | 6.4-9.5
1421-08-3510 | Knob Style | 9.5-12.7
1421-08-4510 | Knob Style | 12.7-15.9
1421-08-5510 | Knob Style | 15.9-19
1421-08-6510 | Knob Style | 19-22.2
1421-08-7510 | Knob Style | 22.2-25.4
1421-08-8510 | Knob Style | 25.4-28.6
1421-20-1510 | Key Operated | 3.2-6.4
1421-20-2510 | Key Operated | 6.4-9.5
1421-20-3510 | Key Operated | 9.5-12.7
1421-20-4510 | Key Operated | 12.7-15.9
1421-20-5510 | Key Operated | 15.9-19
1421-20-6510 | Key Operated | 19-22.2
1421-20-7510 | Key Operated | 22.2-25.4
1421-20-8510 | Key Operated | 25.4-28.6
Technical Specifications
- Series: 1421
- Type: Small Size, Adjustable Grip Range
- Panel Cutout: Other
- IP Rating: IP65
- Finish: Bright chrome plated, Black Matte Powder Coated
- Material: Zinc die (Housing, Cylinder)
- Head Styles: Tool-operated, Slotted Recess, Knob Style, Key Operated
- Grip Range: 3.2-28.6 mm (depending on variant)
