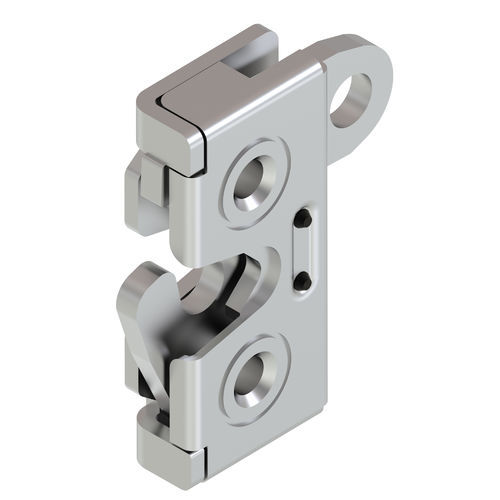

Two phase latch 1803 seriessteelcompactrotary
Add to favorites
Compare this product
Characteristics
- Material
- steel
- Other characteristics
- compact, rotary, internal, two phase
Description
Product Overview
Rotary Latchs 1803 Series Small Size is a compact rotary latch solution suitable for various locking applications. The product is part of the Rotary Latches family and is available in two main part numbers: 1803-05-2051-01 and 1803-05-4051-01.
Key Features
Material
Panel Cutout
Finish
Product Data Sheet
Part Number | Panel Cutout Type | Locked State
1803-05-2051-01 | Thru Hole | Single-Stage
1803-05-4051-01 | Thru Hole | Two-Stage
Caractéristiques / Spécifications techniques
Rotary Latchs 1803 Series Small Size is a compact rotary latch solution suitable for various locking applications. The product is part of the Rotary Latches family and is available in two main part numbers: 1803-05-2051-01 and 1803-05-4051-01.
Key Features
- Remote locking
- Single-point or multi-points locking capability
- Left-Right Interchangeable, Convenient Replacement
Material
- Base: Q235
Panel Cutout
- Others
Finish
- Electroplated zinc (电镀锌)
Product Data Sheet
Part Number | Panel Cutout Type | Locked State
1803-05-2051-01 | Thru Hole | Single-Stage
1803-05-4051-01 | Thru Hole | Two-Stage
Caractéristiques / Spécifications techniques
- Product Type: Rotary Latch
- Series: 1803 Series Small Size
- Panel Cutout: Others
- Finish: Electroplated zinc
- Material: Q235
- Remote locking capability
- Single-point or multi-points locking
- Left-Right Interchangeable
- Part Numbers: 1803-05-2051-01 (Single-Stage), 1803-05-4051-01 (Two-Stage)
