Screw-in hinge 2114
doordetachable

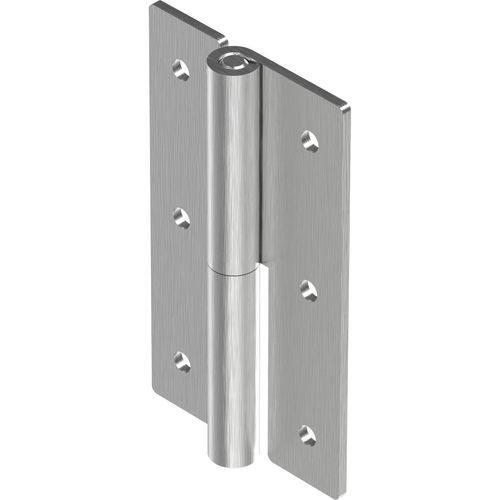

Screw-in hinge - 2114 - Wenzhou Yeeka Lock Technology Co., Ltd. - door / detachable
Screw-in hinge - 2114 - Wenzhou Yeeka Lock Technology Co., Ltd. - door / detachable
Screw-in hinge - 2114 - Wenzhou Yeeka Lock Technology Co., Ltd. - door / detachable - image - 2
Add to favorites
Compare this product
Go to the Wenzhou Yeeka Lock Technology Co., Ltd. website for more information

Characteristics

Installation
screw-in
Applications
door
Other characteristics
detachable
Length

Max.: 64 mm
(2.52 in)

Min.: 64 mm
(2.52 in)

Width

Max.: 36 mm
(1.417 in)

Min.: 36 mm
(1.417 in)

Description

Product
Part numbers: 2114-01-01L, 2114-01-01R, 2114-01-304L, 2114-01-304R.

Overview
The 2114 series screw-on hinge is designed for detachable installation using screws and nuts. Typical fastener: countersunk screw M4. Finish options: zinc plated (Q235 variants) or stainless steel 304.

Key Features
  • Simple installation with screws and nuts
  • Detachable assembly for maintenance or replacement

Material
  • Door part / Frame part: Q235 or Stainless steel 304 (depending on variant)
  • Pin: Q235

Data Sheet
  • 2114-01-01L: Q235; Zinc plated; Left opening
  • 2114-01-01R: Q235; Zinc plated; Right opening
  • 2114-01-304L: Stainless steel 304; Stainless steel 304; Left opening
  • 2114-01-304R: Stainless steel 304; Stainless steel 304; Right opening

Additional Product Notes
Hinge size: 64x36. Installation mode: countersunk screw M4. Finish: zinc plated for Q235 variants or stainless steel 304 for 304 variants.

Specifications / Technical details
  • Model / Series: 2114 Series
  • Hinge size: 64x36
  • Installation mode: Countersunk screw M4
  • Finish: Zinc plated (Q235 variants); Stainless steel 304 (304 variants)
  • Door part / Frame part material: Q235 or Stainless steel 304
  • Pin material: Q235
  • Key features: Simple screw/nut installation; Detachable
  • Available part numbers: 2114-01-01L, 2114-01-01R, 2114-01-304L, 2114-01-304R
