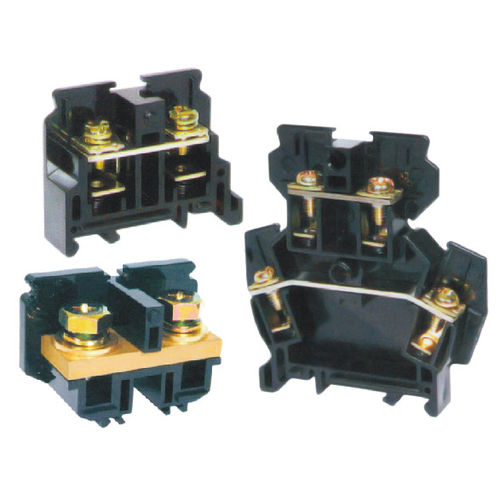

DIN rail-mounted terminal block 77 series

screw connectionfusedmodular

WERNER'S 77 series terminal blocks are standard screw terminal blocks with an innovative edge mountable on standard 35mm DIN rail, except for 10 Amps block which sits on 15 mm Din rail saving huge space in the panel. Available in different types like standard, spring lift, double deck, 3 pole with one piece Din rail and terminal blocks with fuse and indicator in Led or Neon. Features Overview - One piece construction concept - Standard 35 mm Din rail mounting - Terminal blocks with fuse and indicator (LED/Neon) also in the range - Spring lift blocks with touch-down terminals with spring loaded captive screws Highlights - Terminal blocks are flame & shock resistant - Many options of terminations available in this model - Terminal blocks are with marking strips and dust covers The unique “spring lift” terminal makes wiring ring-lugs very simple, 77 series terminal blocks with full size screws (nut & bolt termination on larger models) and current ratings up to 300 Amps almost for all applications. A UL94-VO flammability rating ensures safety. Dust covers and fuse holders with optional fuse status indication complete the model selection These terminals use full size screws in various sizes, held captive by unique carrier armature. Modular construction is incorporated for stacking of multiple sized blocks, with only one end plate require per run. A wide range of accessories such as jumper strips, dust covers and name tags are available to simplify wiring and to protect terminals.
