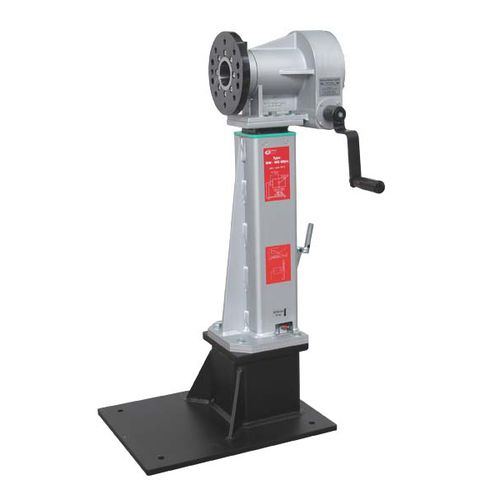

engine repair stand engine repair stand - WW-RS-600/V


  • Applications:

    for engines


ww-RS-500 Engine Repair Stand for Passanger Cars

Carrying capacity of 500 kg max.
Designed for a single person operation
Fixing flange with 6 pcs bore available
Fixing flange sizes 385 x 500 mm
360 ° swivel locked worm gear system
Suitable for passenger car engines & transmissions
Safe in all positions, automatic gear lock system
ISO 9001-2008 and CE certified, made in Germany

WW-RS-500 engine and transmission repair stand is applicable in all automobile, motorcyle workshops. It is used even in the industry by assembling and disassembling maschines. Suitable for repairs up to 6 cylinder engines as well as transmissions and axles up to 500 kg weight.. Self-locking worm gear allows easy and free maneuvering and safe positioning.
WW-RS-500 is equipped with an internal hydralic system, which enable the user to lift up the engine up to 180mm height. Height adjustment is a unic feature of ww-MG-600V engine repair stand.
Ready to use assembly with removable oil pan and waste oil tank. Delivery on pallet.
