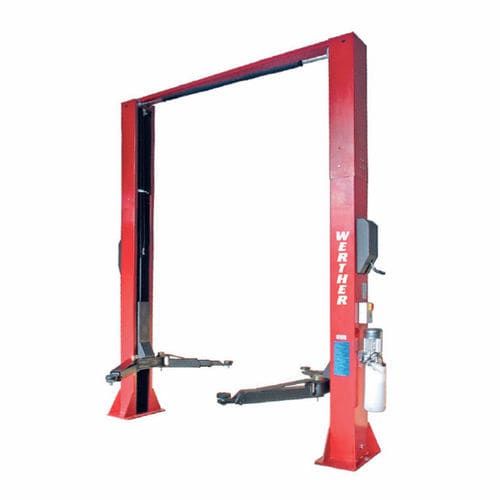

2-post lift 210I series
4 ton3 tonelectro-hydraulic

2-post lift
2-post lift
2-post lift
2-post lift
Add to favorites
Compare this product

Go to the WERTHER - SOLLEVAMENTO website for more information

Characteristics

Type
2 posts
Maximum load
4 ton, 3 ton
Operation
electro-hydraulic
Voltage
400 V, 230 V
Applications
for car
Lifting height

Max.: 2,011 mm
(79.173 in)

Min.: 95 mm
(3.74 in)

Minimum height

95 mm
(3.74 in)

Lifting time

37 s, 43 s

Motor power

2.2 kW
(2.99 hp)

Weight

690 kg, 715 kg, 745 kg
(1,521.19 lb, 1,576.31 lb, 1,642.44 lb)

Description

Symmetric lift without baseframe for greater space free area at work Equipped with two lifting rams which do not require maintenance. Non-bearing cables for perfect synchronisation of the trolleys no matter what distribution weight is loaded Designed with short, super lowered three-stage arms parallel to the foor: ideal for lifting low, long wheel based vehicles designed with 4 extended three-stage arms: ideal for lifting vans and long wheel based vehicles Safety valves protecting to prevent overloads and breakages of hydraulic hoses Descent velocity controlled by hydraulic valve Mechanical support device with automatic activation and deactivation by means of electro-magnetic valve insuring maximum safety during locking procedures
