terminal with touch screen / kiosk / wall-mount / panel-mount
Version 3

{{requestButtons}}

Characteristics

  • Interface:

    with touch screen

  • Mounting:

    kiosk, wall-mount, panel-mount

  • Other characteristics:

    rugged

  • Applications:

    display, industrial, information

  • Screen size:

    43 cm (16.9 in)

Description

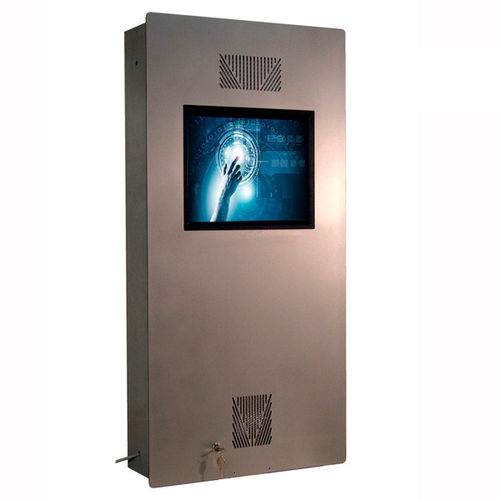

The robust and versatile applicable terminal can be integrated in a wall. The housing system is designed for wall integration.

wall-mounted outdoor terminal version 3 - for integration in a wall

43cm / 17" touch-screen monitor (vandal-proof) with back-ventilation system, UV filter
Robust housing front made of stainless steel (V2A) or aluminum with silver grey powdered surface
The front is inserted from the front using a hook system almost flush with the wall.
Flush mounting frame made of galvanized steel sheet
Silent fan
Service access from the front
connector strip and distribution box are integrated
ventilation for supply an return air with climate module (heating, hygrostat, thermostat - without cooling module)
Ventilation openings are located on the front of the housing.
With integrated internal ventilation system (legally protected).
Suitable for wall installations, without ventilation through the masonry.

Possible options:

Adaptation of the front panel or housing size and depth according to customer-specific conditions (from 1 piece).
Powdered surface in preferred colour (RAL color)
15 "or 19" touchmonitor or protective glass
Stainless steel keyboard
Mounting shelf
speaker
Mini PC

Further possible options are for example:

Thermal printer 80 mm wide, Omnidirectional barcode scanner, inductive or magnetic / chip card reader, coin validator, web camera, telephone receiver with preamplifier, proximity sensor

Measurements

Dimensions: (HxWxD) Front panel 1130 x 560 x 3 mm / installation frame 1100 x 530 x 169 mm

06.01.2016
Errors and omissions excepted.
