Water filter CenTROL®

membranegravityfor pump

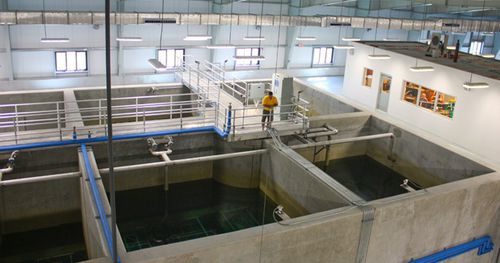

CenTROL® Conventional Gravity Filters in a Cluster Arrangement CenTROL® conventional gravity filters may be applied wherever a cost-effective, space-saving conventional gravity filter is desired. The heart of the General Filter CenTROL lies in the prefabricated center column that eliminates onsite assembly of a piping gallery. CenTROL furnishes its own backwash water supply from in-service cells. In most cases, backwash supply pumps are eliminated. Each CenTROL filter has four granular media filter cells positioned around a central distributor column. Circular weirs evenly divide the water to each operating cell for filtration. The water then flows down through the filter media and through the underdrain and out into an effluent chamber and over the effluent weirs. During backwash, the effluent weirs provide backwash head to clean the filters with water from in-service cells. Backwash waste is discharged from the bottom of the distribution column. Prefabricated components include the distributor column, washtroughs, and underdrain forms. These components simplify construction and minimize cost. CenTROL filters are used in hundreds of plants. They are preferred for their compact arrangement and simple operation. The CenTROL offers you:Low system headlossCluster arrangement for compact footprintMULTICELL® in-service backwash supply to eliminate or minimize backwash pumpingPre-engineered system to reduce design costs NEW Low Profile CenTROL System with MULTIWASH® Process: A newly designed low profile CenTROL system reduces operating and installation costs providing you an efficient and low cost alternative to conventional gravity filter design.
