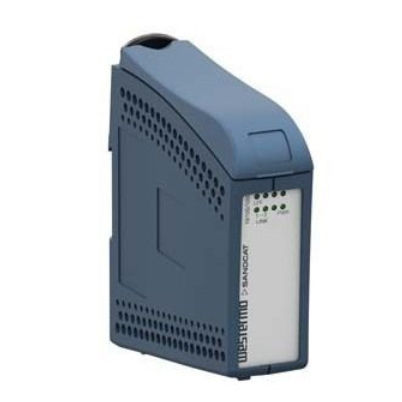

Protocol converter SandCat-MC-3502-F1G-T1G-LV

speedmediatemperature

Specifications (summary)

• Gbit or Fast Ethernet auto-negotiation
• Transparent to industrial Ethernet protocols
• Purpose-built DIN-rail casing with integral clip

Diagnostics and legacy connectivity

• Port mirroring function
• Diagnostic LEDs
• DIP switches to lock port parameters for old equipment

Designed for industrial applications

• Dual power input
• Unique tri-galvanic isolation
• Comprehensive set of industry approvals

Description
The SandCat-3000 series comprises industrial unmanaged gigabit switches and the SandCat-MC-3502-F1G-T1G-LV media converter, developed for current and future industrial data networks. These units deliver reliable connectivity in demanding environments including industrial sites, maritime and trackside installations. They support 802.1Q long packets and standard industrial Ethernet protocols.
The SandCat-MC-3502-F1G-T1G-LV is intended for industrial use with dual 9.6 to 57.6 VDC power inputs. Its unique tri-galvanic isolation provides separation between ports, power supplies and chassis screens to prevent ground loop currents. The IP21 rating allows installation where condensed water may occur.
Only industrial-grade components are used to achieve high MTBF and long service life. A wide operating temperature range of -40 to +70 °C is supported with no moving parts. The series has been tested to meet stringent EMC, isolation, vibration and shock standards suitable for heavy industrial, trackside and maritime environments.
The link fault forward function propagates media-failure indications to connected ports, enabling use in resilient network topologies. Network diagnostics are simplified by a port mirroring facility for monitoring with a protocol analyzer. DIP switches allow locking port speed and flow control to accommodate legacy Ethernet devices that do not support auto-negotiation.

Technical characteristics / specifications

• Model: SandCat-MC-3502-F1G-T1G-LV (SandCat-3000 series)
• Type: Industrial Ethernet Media Converter
• Ports: 1 × RJ-45 10/100/1000 Mbit/s
• Optical ports: 1 × 100/1000 Mbit/s SFP
• Power (model): 12–48 VDC
• Power (series): dual 9.6–57.6 VDC
• Operating temperature: -40 to +70 °C
• Additional functions: link fault forward, port mirroring, DIP switches to lock data rates/flow control
• Isolation: Tri-galvanic isolation between ports, power and chassis screens
• Enclosure: Purpose-built DIN-rail casing with integral clip, IP21
• Approvals: Industry approvals for EMC, isolation, vibration and shock (suitable for industrial, trackside and maritime use)
