Characteristics
- Mounting
- built-in, DIN rail, integrated, pre-assembled, wall-mount
- Other characteristics
- Ethernet, fanless, wireless, interface, modular
Description
Features
High Speed Connectivity
Designed and Built for Onboard Rail Applications
Typical Applications
Product Summary

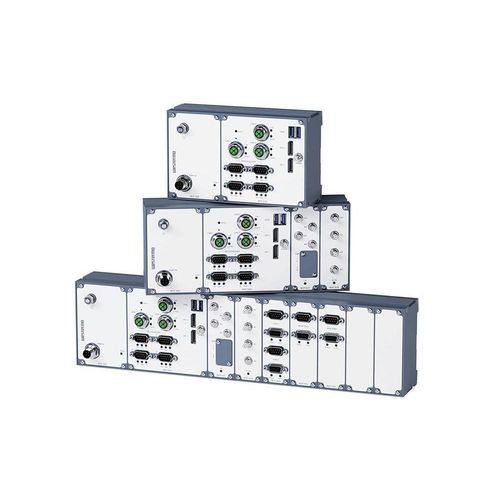

The RCP-1000 is a modular computing platform designed for railway environments. Its adaptable architecture supports pre-assembled extension modules for customer-specific configurations and short lead times. The fanless, maintenance-free design supports DIN rail, wall, or 19" rack mounting. Equipped with industrial-grade interfaces, the RCP-1000 meets demanding environmental standards and is suitable for harsh conditions. The platform provides three gigabit Ethernet ports, serial and wireless connectivity, and optional extensions such as MVB and CAN. The series includes a Baseboard Management Controller (BMC) for monitoring boot processes, temperature, and voltage with configurable actions. Security is enhanced with an integrated Trusted Platform Module (TPM) 2.0 to protect platform integrity and prevent unauthorized firmware or software changes.
Standards and Certificates
EN 50155 compliant and designed for railway applications.
Technical specifications
- Scalable performance due to SMARC standard
- Various I/O interface options
- EN 50155 compliant
High Speed Connectivity
- Triple Gigabit Ethernet on M12 X-coded connectors
- Wireless connectivity over Wi‑Fi and LTE
Designed and Built for Onboard Rail Applications
- Ultra-wide-range power supply 24 to 110 VDC
- Built-in cybersecurity
- Maintenance-free fanless design
- Operating temperature: -40 °C to +70 °C (95 °C peak spec shown as 85 °C)
Typical Applications
- Cybersecurity Gateway
- Passenger Information Systems
- Passenger Entertainment Systems
- Diagnostic Systems
- Telematics
Product Summary
The RCP-1000 is a modular computing platform designed for railway environments. Its adaptable architecture supports pre-assembled extension modules for customer-specific configurations and short lead times. The fanless, maintenance-free design supports DIN rail, wall, or 19" rack mounting. Equipped with industrial-grade interfaces, the RCP-1000 meets demanding environmental standards and is suitable for harsh conditions. The platform provides three gigabit Ethernet ports, serial and wireless connectivity, and optional extensions such as MVB and CAN. The series includes a Baseboard Management Controller (BMC) for monitoring boot processes, temperature, and voltage with configurable actions. Security is enhanced with an integrated Trusted Platform Module (TPM) 2.0 to protect platform integrity and prevent unauthorized firmware or software changes.
Standards and Certificates
EN 50155 compliant and designed for railway applications.
Technical specifications
- Architecture: Modular SMARC-based computing platform
- Ethernet: 3 × 1 Gbps Ethernet, M12 X-coded connectors
- Serial: 4 × RS232/422/485 (D-sub)
- Display / USB: 2 × DisplayPort, 2 × USB 3.0
- Storage: Integrated SSD
- Wireless: Built-in LTE and Wi‑Fi (optional extensions available)
- Mounting: DIN rail, wall-mount, 19" sub-rack
- Power: 24 to 110 VDC
- Environment: Operating temperature -40 °C to +70 °C (extended spec noted)
- Security: Integrated TPM 2.0
- Management: Baseboard Management Controller (BMC) for monitoring and event handling
