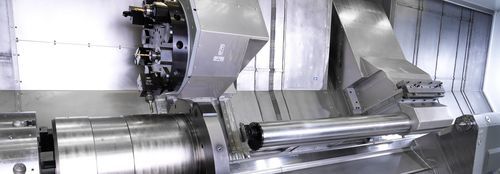

CNC turning machine T series2-axis4-axisinclined bed
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 2-axis, 4-axis
- Structure
- inclined bed
- Applications
- for complex parts, for heavy-duty machining, for shaft machining
- Performance
- high-precision, high-productivity
- Part diameter
1,500 mm
(59 in)- Maximum part length
8,000 mm
(315 in)
Description
Overview
Based on the MILLTURN machine concept, WFL builds inclined-bed turning machines designed for maximum stability and functionality. These machines address heavy machining as well as high-precision turning of shaft and chuck parts, including internal turning with long boring bars.
The T-Series
The models T40 to T150 are inclined-bed turning centers equipped with one or more tool turrets (available with driven tools and C‑axis) for heavy cutting and high-precision machining of shafts and chuck parts.
Benefits (T-Series)
The TB-Series
The TB-series machines are the optimal solution for complex turned parts and applications requiring a large tool capacity. TB40 to TB150 enable high-precision machining of shaft and chuck parts up to 1500 mm diameter and workpiece lengths up to 8000 mm. Options include Y‑ and B‑axes, an external large-capacity tool magazine, an automatic tool changer and an optional prismatic tool system for automated use of especially long and heavy tools.
Benefits (TB-Series)
Characteristics / Technical specifications
Based on the MILLTURN machine concept, WFL builds inclined-bed turning machines designed for maximum stability and functionality. These machines address heavy machining as well as high-precision turning of shaft and chuck parts, including internal turning with long boring bars.
The T-Series
The models T40 to T150 are inclined-bed turning centers equipped with one or more tool turrets (available with driven tools and C‑axis) for heavy cutting and high-precision machining of shafts and chuck parts.
Benefits (T-Series)
- Simple, reliable mechanical design
- Highest stability and precision
- 2-/4-axis turning capability
- Fully enclosed working area for clean, safe operation
The TB-Series
The TB-series machines are the optimal solution for complex turned parts and applications requiring a large tool capacity. TB40 to TB150 enable high-precision machining of shaft and chuck parts up to 1500 mm diameter and workpiece lengths up to 8000 mm. Options include Y‑ and B‑axes, an external large-capacity tool magazine, an automatic tool changer and an optional prismatic tool system for automated use of especially long and heavy tools.
Benefits (TB-Series)
- Large tool capacity to support intensive tool wear
- B‑axis enables continuous machining of complex contours with standard tools
- Generous Y‑axis travel for precise diameter measurement during machining
- Inclined-bed concept plus fully enclosed working area allows clean, productive roughing at high chip removal rates
Characteristics / Technical specifications
- Machine concept: inclined-bed turning machines based on the MILLTURN platform
- Series: T‑Series (T40–T150) and TB‑Series (TB40–TB150)
- Axis configurations: 2-/4‑axis turning; TB‑Series offers Y‑ and B‑axes
- Tooling: one or more tool turrets; options for driven tools and C‑axis
- Tool handling (TB): external large-capacity tool magazine, automatic tool changer, optional prismatic tool system for long/heavy tools
- Work area: fully enclosed
- Maximum machining capacities (TB): up to Ø1500 mm; workpiece length up to 8000 mm
