Surface mounted junction box
ATEXincreased safetyIP67

surface mounted junction box
surface mounted junction box
Add to favorites
Compare this product


Characteristics

Mounting
surface mounted
Protection level
increased safety, ATEX, IEC, IP67
Material
polycarbonate, copper
Width

145 mm (6 in)

Length / diameter

55 mm (2.2 in)

Description

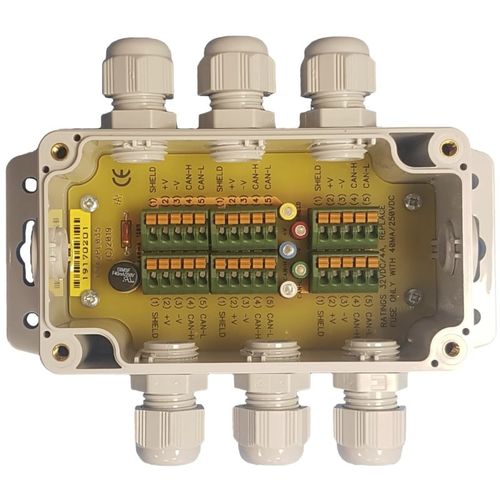

CAN-bus installations running at long distances and low speeds can use fairly long stub lines. This allows for a simpler wiring topology where the different nodes can be placed up to 5 meters away from the 'backbone'. Particularly on long distances, this is extra beneficial because the effective length of the CAN-bus can remain shorter, which saves on wiring cost and - more importantly - reduces voltage drops along the line. To aid such install, we have this field bus distribution box, which allows for up to 6 or 12 cable segments to be joined together. This is done with 5-pole spring terminal connections. The connections are mounted in an IP67/NEMA4X rated polycarbonate enclosure with M16 holes for cable glands. Integrated termination resistor and 2mm multimeter probe-points allow for easy configuration and diagnostic of the network wiring. 6× 3.5mm spring clamp terminal block 1.3mm signal clearance & creepage 2.0mm copper traces, 70μm thick 120Ω termination resistor with 40mA fuse, fuse also acts as termination enable switch 6× M16 cable gland entry + 2× M16 blind plugs (included, also 4 blanking plugs) 115x65mm Polycarbonate enclosure 55mm high Flange mounting, width 145mm ATEX II 3GD increased safety 'ec' (IEC 60079-7), type of protection 'nA' (IEC 60079-15) and dust enclosure 'tc' (IEC 60079-31) Modifications and custom design possible, let's discuss your requirements!
