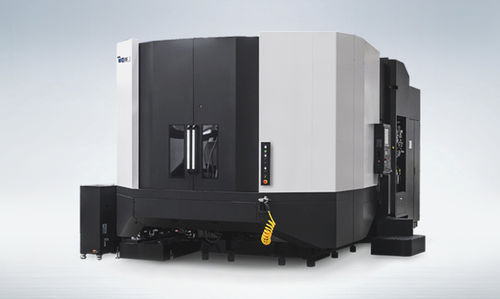

3-axis CNC machining center HS series
horizontal40 tools60 tools

3-axis CNC machining center
3-axis CNC machining center
3-axis CNC machining center
3-axis CNC machining center
3-axis CNC machining center
3-axis CNC machining center
3-axis CNC machining center
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
horizontal
Number of tool stations
40 tools, 60 tools
Applications
cutting
Other characteristics
high-speed, high-performance, high-productivity, high-rigidity
X travel

1,050 mm, 1,400 mm
(41 in, 55 in)

Y travel

875 mm, 1,200 mm
(34 in, 47 in)

Z travel

875 mm, 1,370 mm
(34 in, 54 in)

Rotational speed

6,000 rpm, 10,000 rpm
(37,699 rad.min-1, 62,832 rad.min-1)

Power

25 kW, 30 kW, 45 kW, 55 kW
(33.99 hp, 40.79 hp, 61.18 hp, 74.78 hp)

Description

Horizontal Machining Center HS6300/8000 II, designed by Hyundai WIA with years of expertise and the latest technology, provides high speed, high performance and maximum productivity. Next Generation High Efficiency Machining Center A symmetrical structure design with the center of gravity of Z-axis and transfer axis matching Easy chip disposal with direct chip discharging structure Best-in-class rapid traverse rate of 60m/min (2,362ipm) Machining of the largest workpiece in its class ATC design capable of attaching the largest tools in its class Unlike the previous reverse T-shaped structures, HS6300/8000 II has a horizontally symmetrical design with the Z-axis transfer system at the center of the material. In particular, a boxed bed design with extremely high rigidity not only secured the structural stability but also improved vibration absorption, enabling ample medium cutting and excellent illumination for machining with a symmetrical structure on the Z-axis. Changed Chip Disposal Structure Designed to directly drop chips onto the chip conveyor, HS6300/8000 II enables seamless chip disposal even during mass chip generation. (Chip processing capability has been greatly improved compared to the screw-type chip conveyor in existing machines.) Step Type Bed Structure It is designed to minimize the load occurring at the front. Also, travel stability is increased by column weight optimization.
