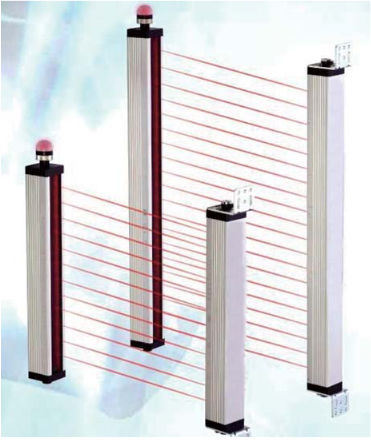

Safety light curtain LCS Series

multibeamthrough-beam

Prodcuts Name LC: Light Curtain Type S: Light Curtain Switch C: Light Curtain Safe Switch Beam Pitch 25: 25mm - 40: 40mm Number of Beams 4: 4 Beams 8: 8 Beams 16: 16 Beams 24: 24 Beams 6: 6 Beams 12: 12 Beams 20: 20 Beams 32: 32 Beams Sensing Mode T: Through Beam Sensing Range 1.5: 0-1.5 Meter 5: 1-5 Meter Output Mode N: NPN N.O./N.C. P: PNP N.O./N.C. NC: NPN N.C./N.C. PC: PNPN.C./N.C. Indicator type L: Warning Light B: Warning Bell Others Simple wiring, no traditional controller any more, ail products are CE approved. Excellent stability. offers good interférence résistance: prevent from the interférence of Inverter.electric noise (high frequency florescent light), electric magnetic wave, sunlight etc. The sensing position of detected object is easily visible. Attached 1 piece warning light and 2 pièces Euro style connector with 5M cables. Détection distance: 1~ 5M or 0-1.5M. Aluminum alloy Housing, Cube 25*30mm. LCC Sériés need use a safety relay MSR-001.
