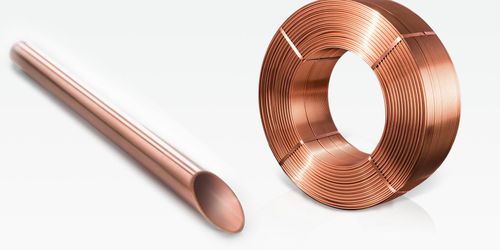

Copper tube cuproform®

coil

In boiler manufacture, for example the tubes may be formed by: expanding, bending, upsetting and beading. Industrial copper tubes from conventional production do not always meet these high demands. Therefore, it is often necessary to use additional fittings made from other materials. This results in further production steps and consequently higher production costs. Your benefits no special fittings necessary; this results in lower costs of production higher added value in your production exceptional forming properties – 80% expansion of the tube end tested and certified on the inspection certificate less scrap with very high deformation Fields of application Connecting pieces, e.g. especially for boilers Technical properties Materials Cu-DHP Conditions soft and extra soft Delivery form Layer-wound coils and straight lengths Coil weights 100 kg, 150 kg, 300 kg, 530 kg Available dimensions 6 - 28 mm for LWC; 6 - 64 mm for straight lengths
